Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Specifications
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining
Condition :
New
Minimum Particle Size :
0.3Micron
Place of Origin :
Hebei, China
Brand Name :
YITE
Dimension(L*W*H) :
460*390*1380(m'm)
Weight :
45kg
Warranty :
1year
After-sales Service Provided :
Online support
Product name :
Dust Collector Cyclone
Application :
Initial stage dust collector
Material :
Carbon Steel
Color :
Blue
AIr Volume :
750-1060 m3 / h
Resistance (kg/m3) :
85-99
Efficiency :
Up to 99%
OEM :
yes
ODM :
yes
Structure :
Box-type
Certification :
ISO9001
Packaging Details :
transport by container. Dust Collector Cyclone
Port :
TIANJIN
Supply Ability :
100 Set/Sets per Year Dust Collector Cyclone
Price :
$5,500.00/sets 1-9 sets
MOQ :
1
Description
Product Description
High Efficiency Woodworking Dust Collector Cyclone for flour mill

General Introduction

Cyclone Separator is ideal for separating dust with particle size greater than 5 um and it is often employed as an Initial Stage Collector to lighten heavy dusts loads before being sent to a Primary Stage Fabric Collector. By removing coarse particles from the gas stream, and allowing later stage Fabric Collectors to solely remove finer particles, these collectors increase the efficiency and service life of Fabric Collectors (Baghouses) and their Filters. Thus protecting your larger and most costly investment from unnecessary wear and tear.

Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance


Product Specifiaction

Cyclone dust collector type
model
AIr Volume
size(mm)
weight(kg)
YTCY-01
750-1060m³/h
460*390*1380
45
YTCY-02
1460-2060m³/h
556*545*1880
85
YTCY-03
2280-3230m³/h
711*700*2701
130
YTCY-04
4020-5700m³/h
911*910*3040
220
YTCY-05
5500-7790m³/h
1071*1605*3540
300

Working Principle


As the dirty air enters the cyclone dust collector, it is forced into a swirling movement. This results in a centrifugal force acting on the dust particles suspended in the air stream. The particles, denser than the air, are forced to move outwards, towards the cyclone dust collector wall. They then fall downwards, towards the dust exit. The clean air is eventually directed towards the centre of the cyclone and leaves through the gas exit.

Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance

Product Features


1.The Cyclone dust collector hasn't any moving parts. It's convenient for manufacture and management.
2.With the same air volume, The cyclone collector is more smaller size, and the price is more cheaper.
3.As the second dedusting and matched with bag filter, it can be installed vertically, also can be installed in a horizontal. So, it is easy to install and applicate.


Engineering Example
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance

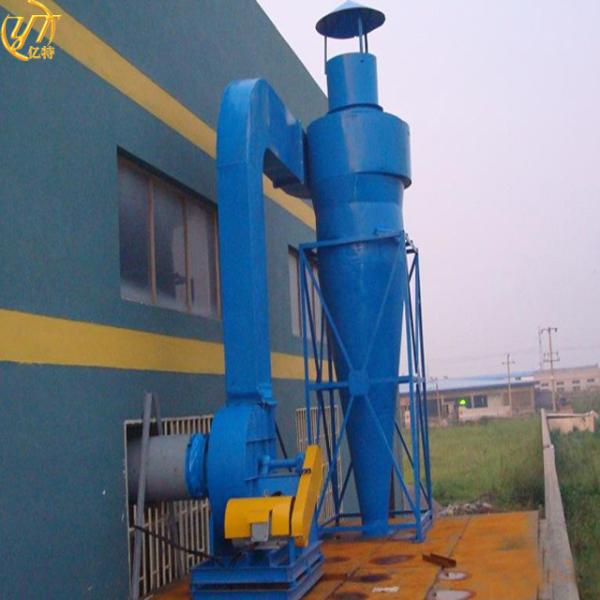

It is used as initial stage collector before bag dust collector

Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance

Woodworking Dust Collector Cyclone

transport
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Our Advantage
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Our Comany
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
FAQ

Q1.Are you a factory and trading company?


A: We are a factory

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Can you suggest me a suitable type?

A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need

Q4. How about your delivery time?

A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Cyclone Dust Collector for Flour Mill Minimum Particle Size 0.3Micron Low Maintenance
