Specifications
Condition :
New
Applicable Industries :
Machinery Repair Shops, dust factory
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2021
Warranty of core components :
1 Year
Core Components :
Motor
Place of Origin :
Hebei, China
Brand Name :
YITE
Purify Efficiency :
95%
Warranty :
1 Year
Weight (KG) :
1000 kg
Material :
polypropylene
Color :
original
size :
1200*4000 mm
Air Volume :
4039-7012 m3/h
Pump power :
1.5 KW
Fan power :
5.5 KW
Certification :
ISO9001,Bv
Filter material :
PP Hollow multifaceted ball
After Warranty Service :
Online support
Local Service Location :
None
After-sales Service Provided :
Video technical support, Online support
Packaging Details :
Wet scrubber is packed with wooden tray.
Fan and pumps are packed into wooden box
Price :
$3,128.00 - $3,458.00/pieces
MOQ :
1
Description
First of all
First of all

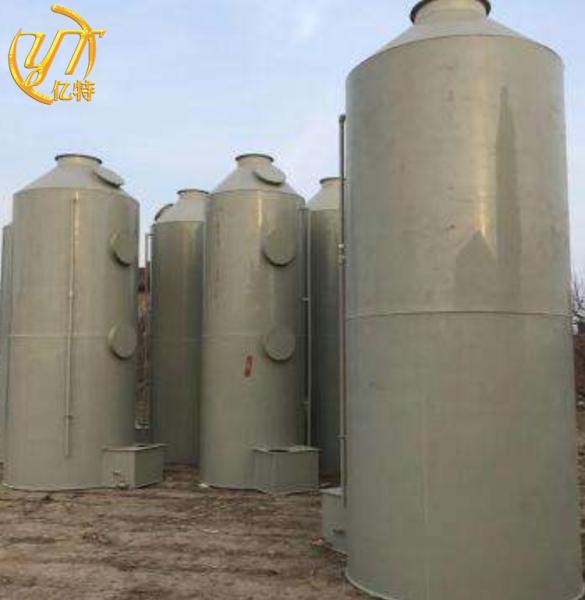

High Efficiency Carbon Dioxide CO2 Wet Gas Scrubber

YT-04PL1200L, YT-04PL1200M and YT-04PL1200H, the differences between them are the fan and pump.

YT-04PL1200L, uses cast iron centrifugal pump and middle-end centrifugal fan.

YT-04PL1200M, uses PP anti-corrosive pump and middle-end centrifugal fan.

YT-04PL1200-H, uses PP anti-corrosive pump and pure copper motor high-end centrifugal fan.

Product Introduction
Product Introduction
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants

Working principle

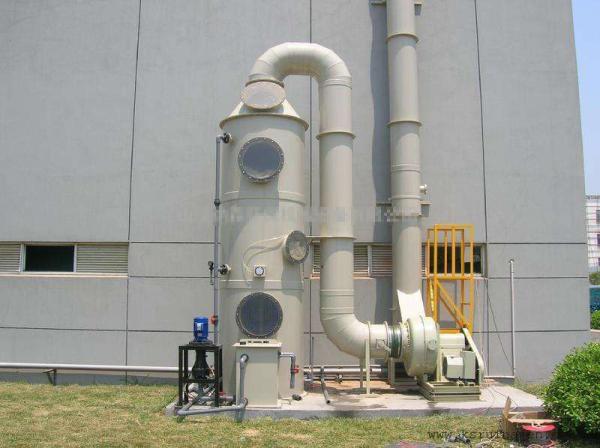

The exhaust gas is introduced into the purification tower by the wind pipe. Through the packing layer, the exhaust gas and the absorption liquid are fully exposed to the absorption and neutralization reaction of the gas-liquid two phase. After the exhaust gas is purified, the fan is discharged into the atmosphere by the dehydration of the mist removal plate and the mist eliminator. The absorption liquid is pressurized by the pump at the bottom of the tower and then sprayed down at the top of the tower. Finally, it is recycled to the bottom of the tower for recycling. The purified acid mist exhaust gas is lower than the national emission standard.

Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
Product Parameters
Product Parameters
Model
Air volume
Pump out/in pipe diameter
Power
Weight
(mm)
(m³/h)
(mm)
(kw)
(kg)
φ800*3500
2000-3000
32/25
0.75
200
φ1000*4000
4000-5000
40/32
1.5
450
φ1200*4000
6000-8000
40/32
1.5
600
φ1500*4200
10000-15000
50/40
2.2
800
φ2000*5000
20000-25000
65/50
4
950
φ2500*6000
30000
80/65
5
1200
Product Application
Product Application
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants

Chemical, petroleum, medicine, food, grease, printing and dyeing, metallurgy, environmental protection, light industry and other industries.

Why Choose Us
Why Choose Us

1.We have advanced equipment and technology
2.Product quality has passed ISO certification
3.Many production lines can be produced in large quantities
4.High quality after-sale service relieves your worries.

Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
Product Packing
Product Packing
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
Main Products
Main Products
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants

DUST COLLECTOR

Cyclone Dust Collector

DOWNDRAFT TABLE

FAQ
FAQ

Q1.Are you a factory and trading company?
A: We are a factory


Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q3. Can you suggest me a suitable type?

A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need


Q4. How about your delivery time?

A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.


Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


Industrial CO2 Gas Wet Scrubber for Dust Filtration in Manufacturing Plants
