Specifications
Brand Name :
CMEC
Model Number :
BD270
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300 pcs per Month
Delivery Time :
7 days for one sample
Packaging Details :
Carton
Materials :
PVC
Floor :
slat or Alimunum floor
Length :
270cm
Max Power :
7.5HP
Net weight :
48KGS
Tube Diameter :
42cm
Description

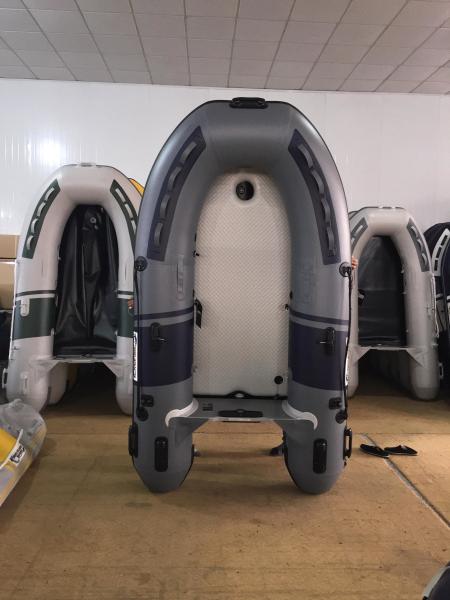

270cm PVC small inflatable sports boat with Aluminum floor BD270 in cheap price for fishing

1. Basic features :

The floor of our sports inflatable boat is flexible, which is usually made of rigid plywood, synthetic plastic or aluminium alloy. It is kept rigid crossways by an aluminium thwart. After the floor has been mounted and chambers on the board and cone keelson have been inflated, the bottom of the boat will be stretched into V-shape, giving the boat better performance on turning tracking and water displacement. Although this type of bottom floor is heavier than that of other pneumatic boats, it can be equipped with 2-75HP outboard engine for higher running speed.

All inflatable sports boats of this series are made of 0.9mm or 1.2mm or hypalon , 1000 Denier polyester fabric which has been specially coated on both sides with PVC. The boat can also be made of Hypalon fabric according to customers' requirement.

Length from2.3m-8.5m

Outside PVC layer offers
Abrasion resistance
Extreme condition resistance
Chemical resistance.

Inside high polyester fabric provides
Dimensional stability
Tensile and tear strength

2. Specification Data :

Model Length (cm) Width (cm) Tube Dia (cm) Max. persons Max. power HP Chamber NO. Max load (kg) Package size
BD230 230 127 33 2+1 2 3+1 250 98×60×30
BD250 250 151 42 2+1 2 3+1 330 98×60×31
BD270 270 151 42 3+1 7.5 3+1 350 120×63×32
BD300 300 151 42 4+1 10 3+1 450 120×63×32
BD330 330 151 42 4+2 15 3+1 550 115×60×35
BD360 360 170 44 5+1 15 3+1 550 129×74×35
BD380 380 170 44 6+1 20 3+1 660 129×74×35
BD410 410 200 50 7+1 25 4+1 760 134×80×40
BD430 430 200 50 8+1 25 4+1 860 134×80×40
BD470 470 200 50 10+1 50 5+1 1050 134×80×40
BD500 500 230 60 12+1 60 5+1 1250 133×80×40
BD585 585 248 63 14+1 60 7+1 1450 180×80×45
BD650 650 248 63 16+2 75 7+1 1650 180×80×45
BD700 700 265 70 20+2 75 7+1 2050 200×80×50

3. Standard accessories :

two pieces of aluminum oars +Marine Grade Plywood bench seat Foot pump
Repairing kits Carrying bag Oar lock/oar holder
Life line Lifting handle Super D-ring
Rubbing Strake fender Drain plug set Motor pad inside/outside
V-keel D-rings Hard and soft handles

4. Optional equipment

Inflatable thwart

Round or square

Under seat bag

Front bag

Boat cover

Extra seat

Canopy

5. Quality Guarantee :

We also provide excellent after-sale services and 3 to 5 year warranty of the hull and materials.Each boat comes with a repair kit containing the maintenance tools and materials(fabrid and glue).The replacement parts will be offered for free within warranty period.In the event that the boat has really quality defects within warranty period,we will offer free replacement parts after the receipt of the related pictures and descriptions supporting the factor; In case of serious quality problems ,a replacement boat will be sent to the customers with next order shipment.

6.Different floor :

1. Air Mat floor

The airmat floor is cleverly designed with thousand of polyester threads criss-crossing one another, it is inflated to a high pressure, proving as tough and rigid as a conventional wooden floor but with the added lightness and comfort. Its small size allows it to be easily transported and stored in tight spaces.

270 cm PVC Small Inflatable Fishing Boats V - Shaped Bottom With Aluminum Floor

2. Aluminum floor ,most used , for bigger size .

The aluminum floor is easy to maintain with its exceptional resistance to all types of impact, this is the favorite type of floor for divers and fans of high-performance boats and also it can be fitted in a completely disassembled for quick and easy maintenance.

270 cm PVC Small Inflatable Fishing Boats V - Shaped Bottom With Aluminum Floor

3. Plywood floor:

Economical & simple to use . It is plywood-board system, makes it the ideal choice for day tripping and fishing activities alike. Its aluminum frame is strong and durable for years of dependable use.

270 cm PVC Small Inflatable Fishing Boats V - Shaped Bottom With Aluminum Floor

4. Slat floor , for small size .

Allows assembly without extracting the flooring from the boat, or those who need compactness and portability. It is small , light and easy to assemble

270 cm PVC Small Inflatable Fishing Boats V - Shaped Bottom With Aluminum Floor
