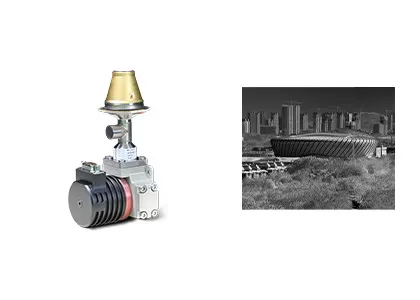

Cooled MWIR MCT 1280x1024 12μM Infrared Detector With Stirling Cryocooler

High Definition Large Array 1280x1024 / 12μm MCT Cooled Infrared Detector for Clear Thermal Imaging

C1212M MWIR is one of the HgCdTe/MCT cooled mid wavelength infrared detectors developed by Global Sensor Technology (GST).

C1212M cooled infrared detector has high resolution, high performance and high reliability. It offers four times as many pixels in the same active image area as conventional 640x512 products. Its reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission. C1212M is an ideal choice for applications that require superior long range performance and image details recognition.

Outstanding Performance
• 1280×1024 resolution for wider FOV and longer distance
• 12μm pixel size for better spatial resolution

Sharp & Clear Image
• High thermal sensitivity
• Good uniformity, effective pixel rate＞99.5%

Designed for Specific Applications
• F number can be customized
• Guarantee continuous supply

The C1212M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

2. What is the advantage of infrared thermal imaging?

---See through total darkness

---Identification under camouflage

---Long range detection

---Heat distribution detection

---Non-contact temperature measurement

---Occupation awareness

---And so on

3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
