Clear Thermal Imaging MWIR Cooled Ir Detector 640x512 / 15μM

Clear Thermal Imaging MWIR Cooled Infrared Detector 640x512 / 15μm

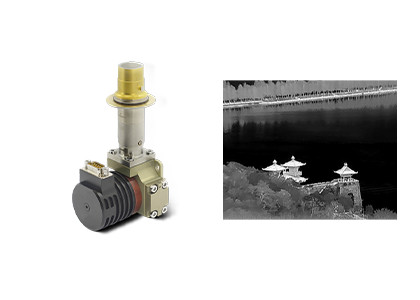

C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512@15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.

The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.

Sharp & Clear Imaging
• Good uniformity, effective pixel rate＞99.5%
• High sensitivity, typical NETD as low as 17mK

Guaranteed Continuous Supply
• Interchangeable standard interface
• Mass production, good consistency

Designed for Specific Applications
• Wavelength can be customized
• F number can be customized
• Mounting surface can be customized
• Multiple cryocooler available

The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.

2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness

3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
