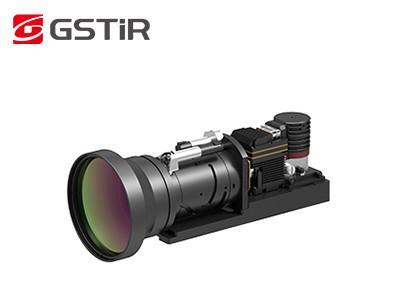

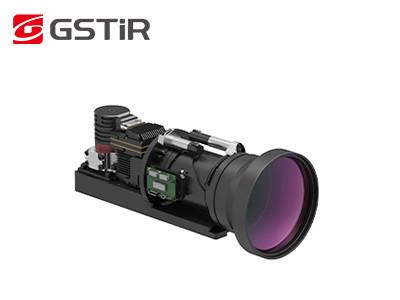

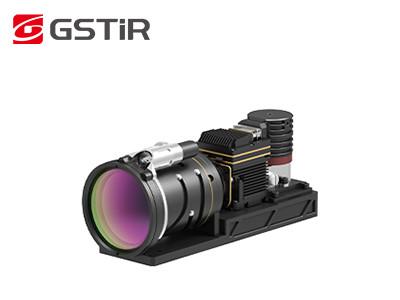

MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection
Specifications
Brand Name :
GST
Model Number :
GAS330
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Resolution :
320x256 / 30μm
Spectral Range :
3.2±0.1~3.5±0.1μm
NETD :
≤15mK
Frame Rate :
30Hz
Product Size :
155x67x80mm
Product Weight :
≤900g
Description
GST GAS330 for Gas Leak Detection

MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection

Product Description

GAS330 is a cooled infrared thermal imaging module specially designed for gas leakage detection. It can automatically detect gas leaks of many industrial gases in a few seconds accurately and safely without the need of shutting down any systems.

GAS330 infrared gas leak detection camera uses 320x256 / 30μm cooled MWIR infrared detector. It has an advantages of non-contact measurement in dangerous areas or areas that are difficult to access, so as to ensure the safety of inspection personnel.

By using this infrared thermal imaging technology in the petrochemical industry, the safety production, environmental protection supervision and cost saving can be ensured.

Main Features

- Resolution: 320x256

- Pixel Pitch: 30µm

- NETD≤15mK, High Sensitivity

- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm

- Wavelength Customizable Based on Different Requirements

- Integrate with DVP/CameraLink Interface Easily

Product Specifications

Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5

Industrial Applications

The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.

Praises from Customers

MWIR Cooled Infrared Camera Module For Non Contact Gas Leakage Detection

FAQs

1. Advantages of Optical Gas Imaging
Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function
2．Working Principle of Optical Gas Imaging
Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.
After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.
The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
