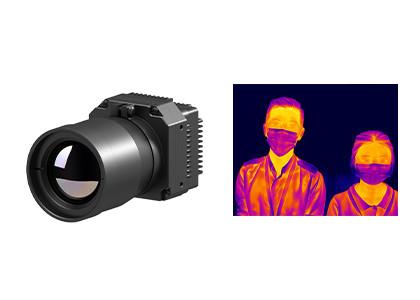

VOx Uncooled LWIR 1280x1024 / 12μm Thermal Camera Module for Industrial Temperature Measurement

PLUG1212R is one of the PLUG-R series uncooled infrared camera module developed by Global Sensor Technology (GST). It is based on GST1212M uncooled infrared detector with professional signal processing circuit and image processing platform, completely transforms the target infrared radiation into temperature data. Its temperature measurement is available and temperature range can be customizable, which meet the specific requirements of industrial thermography.

With large array 1280x1024 resolution, the PLUG1212R uncooled thermal module could present more image details and supports larger field of view. The reduced 12µm pixel size offer better spatial resolution and match shorter optical lens focus to achieve the same range mission.

Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.

- Pixel pitch: 12μm

- Resolution: 1280x1024

- Spectra Range: 8μm -14μm

- High Sensitivity: NETD<30mK

- Temperature Range: -20℃~150℃, 100℃~550℃

- Temperature Accuracy: ±2℃ or ±2%

- High reliability & Strong Environmental Adaptability.

The PLU1212R infrared imaging module is widely used in Power Electricity, Machine Vision, Building Inspection, Metallurgical Petrochemical etc.

1. In which industries can the infrared detectors/thermal camera cores be used?

GST thermal camera modules are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
