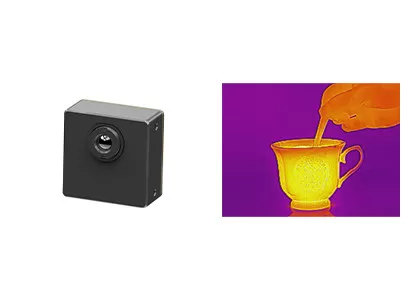

Light Weight 256x192 / 12μm Uncooled FPA Infrared Thermal Module with Thermal Imaging

COIN212/R is one of the COIN series thermal imaging camera core developed by Global Sensor Technology (GST). It integrates 256x192 / 12μm wafer level package (WLP) uncooled VOx infrared detector, high performance signal processing circuit and image processing algorithm. It has an optional thermographic function with measurement range from -20℃~150 ℃ for industrial or body temperature measurement.

Its lightweight and flexible features with various industry standard interfaces make this small infrared camera module beneficial to OEM customers for secondary development and integration in all kinds of thermal imagers and infrared thermographic cameras.

Until now, we have provided our customers with various mature and stable infrared thermal module integration solutions. It’s easier for COIN series infrared thermal camera module to be integrated into more terminal products and greatly reduces the cost for customers.

- Mini Size: 20x20x10.4mm

- NETD<40mk

- Light Weight <8g

- Low Power Consumption

- Rapid Development & Integration

The COIN212/R infrared thermal camera module is widely used in Thermography, Security & Monitoring, Outdoors, Firefighting & Rescue, AIoT, Intelligent Hardware, UAV Payloads, ADAS etc.

1. In which industries are focal plane array infrared detectors used in?

Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.

2. What's the advantage of uncooled infrared detector?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
