Uncooled 400x300 / 17μm Elevated Skin Temperature Screening Thermal Camera for Fever Detction

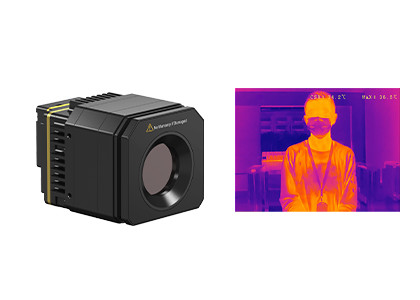

iHA417 fever screening thermal camera is a hot sale product in the fight against COVID-19. It enables a wide range of applications for the rapid non contact measurement and safe preliminary fever screening. It consists of 400×300 / 17μm infrared detector, 7mm infrared optical lens and a specialized SDK for human body temperature measurement.

Data captured by iHA417 can be transferred to the back-end integration platform via 50-pin or USB3.0 interface to achieve the display of full-screen temperature data and infrared thermal image and many other functions. With such infrared thermal imaging module, customers could develop and integrate their own IR fever sensing system quickly and efficiently.

This screening thermal camera is very useful when every person needs to be tested for a fever before entering areas with a large number of people. Places like supermarket, hospital, subway, supermarket, station, school and so on can be integrated with this camera.

- NETD<30mk, High Sensitivity
- Easy to Integrate
- Non-contact Design
- Field of View: 37.2°×28.3°
- Temperature Difference: ±0.5℃
- Temperature Measurement Distance: Optimal 5 Meters

The iHA417 thermal camera is widely used in human body temperature measurement and elevated body temperature screening.

1. What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.

2. What are the key considerations on an infrared detector / thermal module for your application?

---The detector resolution

---The pixel size

---The NETD

---The image quality

---The lens options

---The power consumption

---The size and weight

---The mechanical & electrical interface

---The budget
