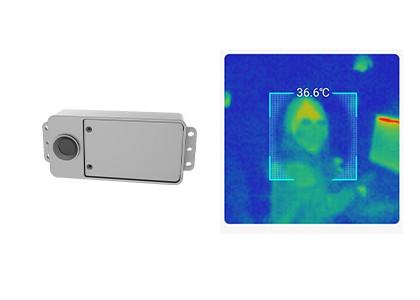

LC260 Uncooled 256x192 / 17μm Thermal Camera Core for Human Body Temperature Measurement

Miniature size LC260 infrared module integrates the wafer level packaging 256x192 / 12μm uncooled infrared detector and is specially designed for body temperature measurement.

The LC260 infrared module has an temperature range from 20℃~50℃ and an accurate temperature range from 28℃~42℃. Its measuring distance could reach 0.5~2.5 meters. With SDK and USB interface, the LC260 uncooled thermal module can be easy to be integrated for secondary development.

As a leading infrared detector and thermal imaging module supplier, Global Sensor Technology (GST) has provided the customers with various mature and stable infrared thermal imaging solutions. It’s easier for our GST products to be integrated into more terminal products and greatly reduces the cost for customers.

- IR resolution120×90
- IR module for body temperature measurement
- Aluminum alloy exterior, enhancing the heat dissipation efficiency
- IP54, higher protection grade
- With SDK and USB interface, easy for integrated development

This product is positioning the field of security and protection. The target customer group is smart face recognition large-screen equipment manufacturers and OEM/ODM manufacturers. The terminal products are used for multi-user fast body temperature measurement in places like factories, office buildings, community entrances, supermarkets, government affairs centers, hospitals and other places with large flow of people or easy to gather people.

1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.

2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
