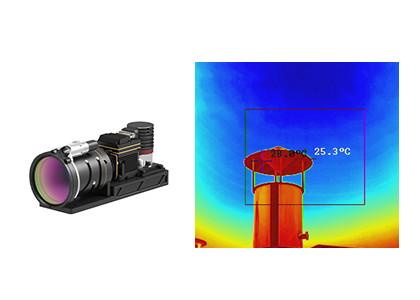

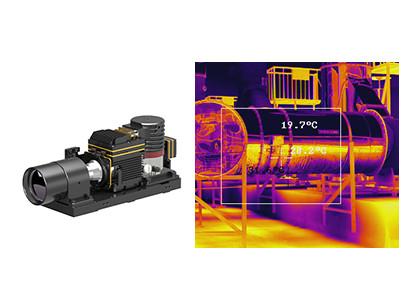

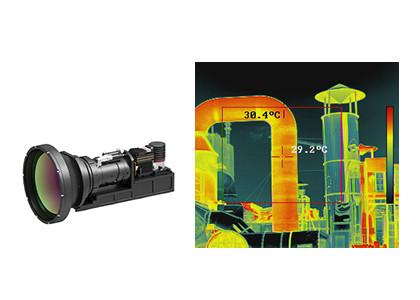

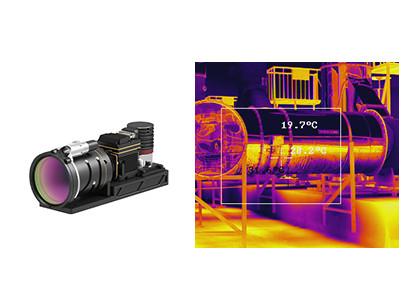

320x256 / 30μm Cooled Infrared Camera Module with 55mm Lens for VOCs Gas Leak Detection

Volatile Organic Compounds, or VOCs, are gases that are emitted into the air from products or processes. Once they leak, it will lead a fatal risk for both employees and local residents.

GAS330 is a cooled infrared thermal module specially designed for gas leakage detection. It integrates 320x256 / 30µm MCT cooled MWIR infrared detector and utilizes spectral wavelength filtering technology to visualize the invisible VOCs that cannot be seen by naked eyes.

It is a very fast, contact-less measurement tool which can be used in difficult-to-access places. By using this thermal camera, the safety of both the inspector and the inspected item will be significantly increased.

- Resolution: 320x256

- Pixel Pitch: 30µm

- NETD≤15mK, High Sensitivity

- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm

- Wavelength Customizable Based on Different Requirements

- Integrate with DVP/CameraLink Interface Easily

The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.

1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

2.What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting

…

3.What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
