Security and Monitoring Thermal Camera Module with LWIR Uncooled Infrared Detector 400x300 / 17μm

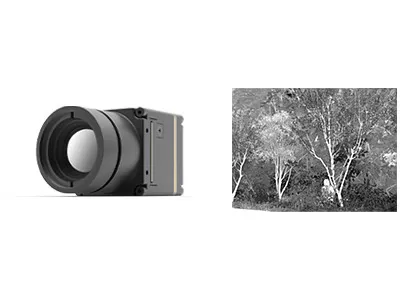

COIN417/R uncooled infrared module is specially designed for the thermal security camera. It integrates 400x300 / 17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm.

The COIN417/R infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

Its lightweight and flexible features with various industry standard interfaces make it beneficial for OEM customers to conduct their secondary development and integration in all kinds of infrared thermal cameras in the field of security and surveillance, which greatly shorten their development time and save cost for them.

- Mini Size: 25.4x25.4x14.1mm

- Light Weight

- NETD<40mk

- High Quality Image

- Low Power Consumption

- Rapid Development & Integration

The COIN417/R thermal imaging module can be integrated into thermal security camera with close range and medium range monitoring and industrial temperature measurement, such as Box Camera, Speed Dome Camera, Dome Camera.

1. What are the advantages of uncooled infrared detectors?

Uncooled infrared focal plane detector does not need cooled device, it can work at room temperature and has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on.

2. What are the advanyages of thermal imaging in the field of security and monitoring?

- Larger field of view and night vision distance of tens of kilometers
- Detect hidden fire in advance, and find fire danger earlier according to abnormal heat.
- Receive passive infrared radiation from the target without additional light
- Work normally in harsh environment such as smoke, haze, rain & snow, glare, strong light etc.
- Accurately distinguish human or animal through thermal distribution, detect camouflage in woods and other complex environment, reduce false alarm rate.
