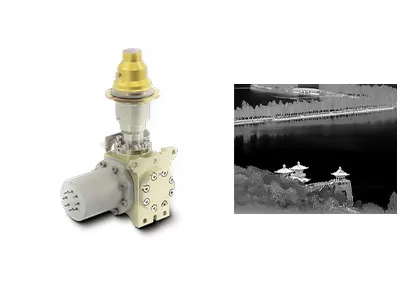

Ultra-compact 640x512 / 15μm MWIR Cooled Infrared Detector for Long Range Surveillance

C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512 / 15μm spec which is very suitable for the long range surveillance system.

Its shapes are various that can match different types of cryo coolers. Due to its flexible size, the C615M MWIR is very suitable to be integrated into the thermal security camera for secondary development, which will greatly save the time and cost for the OEM surveillance camera manufacturers.

In the field of security monitoring, we have close cooperation with major manufacturers at home and abroad, and have very mature experience in infrared thermal imaging solutions, which can shorten the development cycle and save costs for customers.

- Resolution: 640x512

- Pixel Pitch: 15μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption

The C615M MWIR is suitbale for the long range monitoring system and complex environments, such as scarcely populated area, 24/7 all weather monitoring, harsh weather place.

1. What is infrared thermal imaging?

In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.

2. What are the advantages of cooled infrared detectors?

The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
