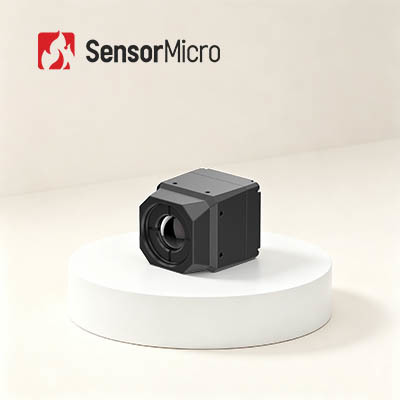

Uncooled Infrared Thermal Security Camera Module With Multiple Lenses
Uncooled Infrared Thermal Security Camera Module With Multiple Lenses
Specifications
Brand Name :
GST
Model Number :
PLUG612
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Type :
Uncooled Infrared Module
Typical Power Consumption :
＜1.2W
NETD :
＜30mK
Frame Rate :
9Hz/25Hz/30Hz/50Hz/60Hz
Resolution :
640x512 / 12μm
Weight :
≤85g
Description
PLUG612 LWIR Thermal Module

PLUG612 Uncooled LWIR 640x512 / 12μm Infrared Thermal Security Camera Module with Multiple Lenses

Product Description

PLUG612 thermal module is specially designed for the security and surveillance monitoring camera. By integrating this module, the security camera could sense an object’s heat radiation, capture images 24/7, regardless of environmental factors such as darkness, lowlight, strong backlight, etc.

Consisted of 640x512 / 12µm uncooled thermal sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG612 thermal imaging core provides clear image and superior performance.

Global Sensor technology is a leading infrared detector supplier and OEM camera module manufacturer. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room, which can provide customers with a stable supply of infrared products.

Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability

Product Specifications

Model PLUG612
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Typical Power Consumption <1.2W
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤85g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 13mm/19mm/24mm

Industrial Applications

The PLUG612 thermal camera module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.

Uncooled Infrared Thermal Security Camera Module With Multiple Lenses

Exhibitions

Uncooled Infrared Thermal Security Camera Module With Multiple Lenses

FAQs

1. In which industries can the infrared detectors/thermal camera cores be used?

GST thermal camera modules are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
