MCT Cooled Infrared Detector Mid Wave FPA 128x128 25μm
MCT Cooled Infrared Detector Mid Wave FPA 128x128 25μm
MCT Cooled Infrared Detector Mid Wave FPA 128x128 25μm
MCT Cooled Infrared Detector Mid Wave FPA 128x128 25μm
Specifications
Brand Name :
GST
Model Number :
C125M MWIR
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Resolution :
128x128
NETD :
＜20mK
Spectral Range :
3.7~4.8μm MW
Pixel Size :
25μm
Description

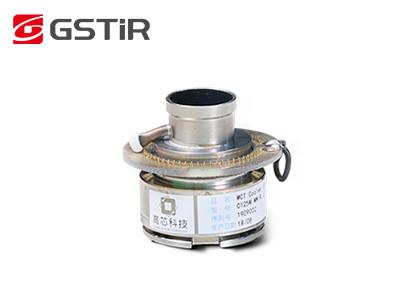

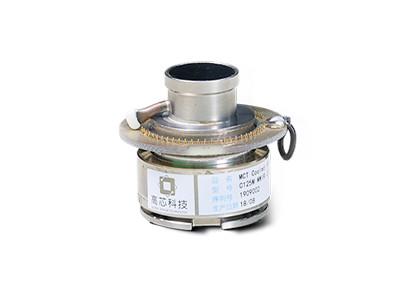

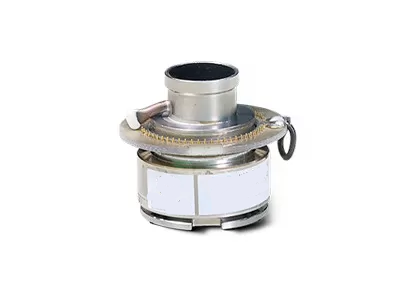

C125M MWIR Cooled Infrared Detector

Mid Wave FPA 128x128 / 25μm MCT Cooled Infrared Detector by GST

Product Description

The C125M MWIR is a cooled thermal imaging detector. Combined with a maintenance free 128X128 IDDCA and a miniature Joule Thomson cooler.

The C125M MWIR fully satisfies the requirement for thermal imaging and very short cool down time to ensure the efficiency.

Main Features


- Resolution: 128x128
- Pixel Pitch: 25μm
- High Sensitivity
- Compact Design
- Lightweight

Product Specifications

Model C125M MW
Material MCT
Resolution 128x128
Pixel Pitch 52μm
Spectral Range 3.7μm～4.8μm MW
NETD ＜20mK

About Global Sensor Technology


MCT Cooled Infrared Detector Mid Wave FPA 128x128 25μm

FAQs

1. What is infrared thermal imaging?

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.

2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
