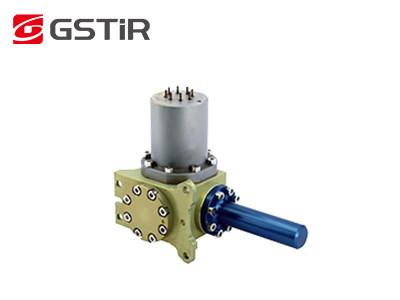

400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors
400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors
400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors
400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors
Specifications
Brand Name :
GST
Model Number :
RS046
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Cooling Power :
(@77K@20℃)＞400mW
MTTF :
＞10000h
Stable Power Consumption :
＜3.2W (130mW@100K@20℃)
Working Temperature :
-45℃~+85℃
Size :
95.6x81x46mm
Weight :
＜260g
Description
RS046 Detector Dewar Cooler

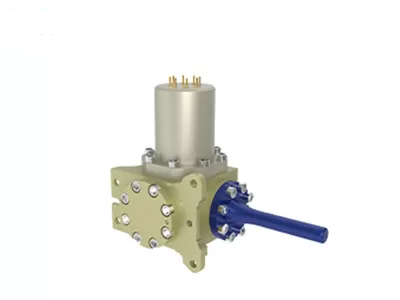

400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors

Product Description

RS046 is a self-developed integral rotary stirling cryocooler by Global Sensor Technology (GST). It has a cryogenic working environment to cool sensors, scientific instruments and optics etc.

With compact mechanical structure, and advanced c-rings sealing, RS046 detector dewar cooler (ddc) was specially developed to fit the applications where low input power, volume and weight are the most important parameters.

It has highly efficient, dependable, proven performance solutions that meet customer’s specific performance requirements.

Main Features

- MTTF＞10000hrs

- Cooling Power: (@77K@20℃)＞400mW

- Cooling Time: <4.5mins(150J@77K@20℃)

- Small Size

- Low Noise

- Low Consumption

Product Specifications

Model RS046
Type Integral Rotary Stirling Cryocooler
MTTF ＞10000hrs
Size (mm) 95.6×81×46
Weight ＜260g
Cooling Power (@77K@20°C)＞400mW
Working Temperature -45°C~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 24-32VDC/9-12VDC
Max Power Consumption <12W
Steady Power Consumption <3.2W (130mW@100K@20°C)
Cooling Time <4.5min (150J@77K@20°C)
Cold Finger Dimension Φ6.4mm
Electronics External
Integration Method IDDCA

Industrial Applications

The RS046 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.

Our Product Line

400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors

FAQs

1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

2.What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting

…

3.What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
