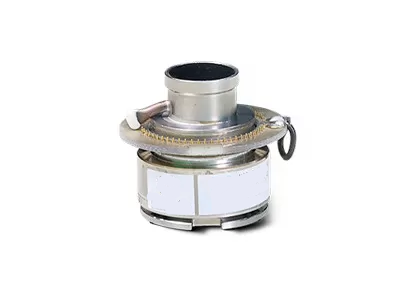

128x128 25μm Integrated Dewar Cooler Assembly MCT IR Detector
128x128 25μm Integrated Dewar Cooler Assembly MCT IR Detector
Specifications
Brand Name :
GST
Model Number :
C125M MWIR
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Resolution :
128x128
NETD :
＜20mK
Spectral Range :
3.7~4.8μm MW
Pixel Size :
25μm
Description
C125M MWIR Cooled Infrared Detector

Mid Wave FPA 128x128 / 25μm MCT Cooled Infrared Detector by GST

Product Description

The C125M MWIR is a cooled thermal imaging detector. Combined with a maintenance free 128X128 IDDCA and a miniature Joule Thomson cooler.

The C125M MWIR fully satisfies the requirement for thermal imaging and very short cool down time to ensure the efficiency.

Main Features


- Resolution: 128x128
- Pixel Pitch: 25μm
- High Sensitivity
- Compact Design
- Lightweight

Product Specifications

Model C125M MW
Material MCT
Resolution 128x128
Pixel Pitch 52μm
Spectral Range 3.7μm～4.8μm MW
NETD ＜20mK

About Global Sensor Technology


128x128 25μm Integrated Dewar Cooler Assembly MCT IR Detector

FAQs

1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting

…

3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
