Compact Mid Wave Cooled Infrared Detector MWIR Detector 128x128 25μm
Compact Mid Wave Cooled Infrared Detector MWIR Detector 128x128 25μm
Specifications
Brand Name :
GST
Model Number :
C125M MWIR
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Resolution :
128x128
NETD :
＜20mK
Spectral Range :
3.7~4.8μm MW
Pixel Size :
25μm
Description

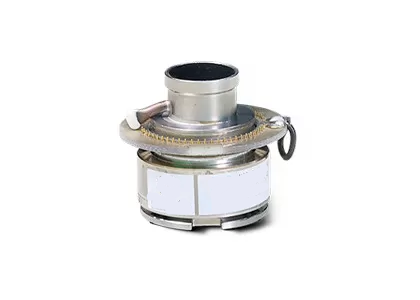

C125M MWIR Cooled Infrared Detector

Mid Wave FPA 128x128 / 25μm MCT Cooled Infrared Detector by GST

Product Description

The C125M MWIR is a cooled thermal imaging detector. Combined with a maintenance free 128X128 IDDCA and a miniature Joule Thomson cooler.

The C125M MWIR fully satisfies the requirement for thermal imaging and very short cool down time to ensure the efficiency.

Main Features


- Resolution: 128x128
- Pixel Pitch: 25μm
- High Sensitivity
- Compact Design
- Lightweight

Product Specifications

Model C125M MW
Material MCT
Resolution 128x128
Pixel Pitch 52μm
Spectral Range 3.7μm～4.8μm MW
NETD ＜20mK

Company Profile


Compact Mid Wave Cooled Infrared Detector MWIR Detector 128x128 25μm

FAQs

1. What is MCT/HgCdTe detector?

MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/ HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than the thermal sensors.

2. What is T2SL detector?

T2SL refers to Type-II Superlattice, which is an artificial material with alternating growth periodic heterojunction at nanometer size. It has high uniformity and superior optical property, such as large electron effective mass,large absorption coefficient and high quantum efficiency. Compared with MCT infrared detector, the T2SL infrared detector has good material uniformity, low cost, and similar performance to MCT infrared detector in medium and long wave band, but has great advantages in very long wave band.
