LWIR Cooled Infrared Detector 640x512 / 15µm for Security Application

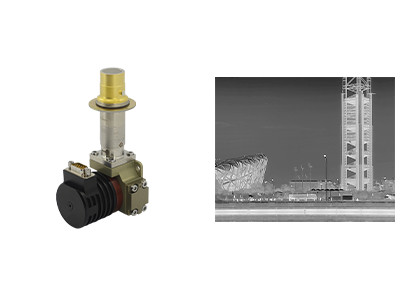

GST C615S Type II Superlattice 640x512 / 15µm LWIR Cooled Infrared Detector Integrated into Security Camera for Long Range Surveillance

C615S LWIR cooled infrared detector features in the format of 640X512 resolution at 15μm pixel pitch. It is based on the world's leading Type II Superlattice technology which enables mass production capability and thus ultimately it will benefit the users with more affordable price but never compromise in performance. The industrial standard size and interface enable customers to switch to and benefit from the most advanced T2SL technology without further R&D investment.

With 640x512 resolution and reduced pixel pitch to 15µm, C615S LWIR cooled detector provides clear image and superior performance. It features in most advanced technology, high quantum efficiency, high frame rate, high sensitivity, low noise, best non-uniformity etc.

Without fear of interference, C615S LWIR superlattice detector is suitable for target detection in complex background, such as ships on the sea in the scene of light reflection on the water surface, aircraft in the background of clouds in the sky, etc.

- Resolution: 640x512

- Pixel Pitch: 15µm

- High Sensitivity

- Good Imaging Effect

- Low Noise

- Stable Performance

- Excellent Non-uniformity

The C615S LWIR cooled IR sensor is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.

2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
