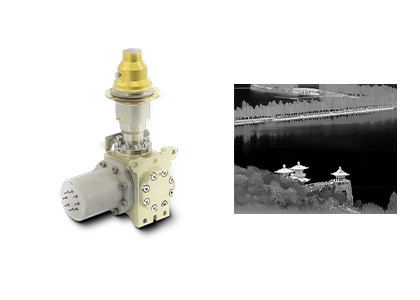

Clear Thermal Imaging MWIR Cooled Infrared Detector 640x512 / 15μm

C615M MWIR is one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). It is with the most popular 640x512@15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.

The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.

- Resolution: 640x512

- Pixel Pitch: 15μm

- High Sensitivity

- Compact Design

- Lightweight

- Low Power Consumption

The C615M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.

2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting

…

3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
