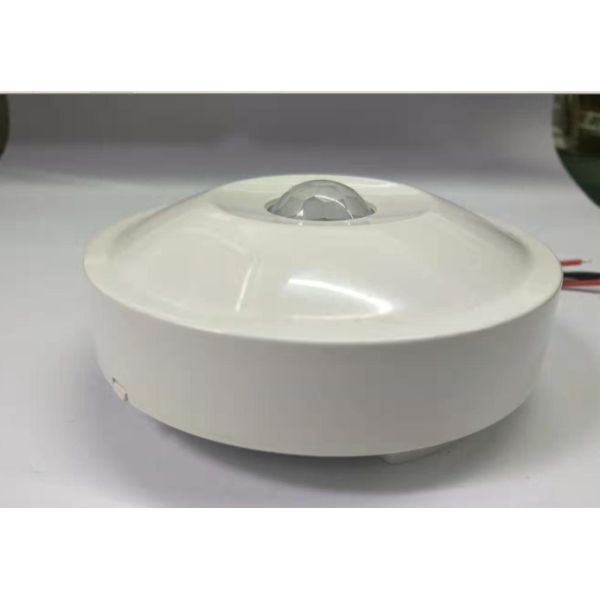

Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving
Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving
Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving
Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving
Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving
Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving
Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving
Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving
Specifications
Brand Name :
YFH
Model Number :
FJ-001
Certification :
CE
Place of Origin :
China
MOQ :
1000
Price :
Deliberation
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
10days
Working voltage: :
AC170V - AC250V 50 hz
Induction distance :
5-12 meters
Delay time :
30 s to 60 s
Sensitivity range :
7 or less lux
Load function :
200 w or less three wire system
Product name :
Infrared Induction Switch
Description

Pir Sensor Three-Wire Human Body Infraceiling Mount Indoor Energy Saving Infrared Induction Pir Sensor Switch

1. Main Technical Parameters

Working voltage

AC170V - AC250V 50 hz

Load function

200 w or less three wire system

Induction distance

5-12 meters

Induction Angle

around 120 degrees and 120 degrees

Delay time

30 s to 60 s

Sensitivity range

7 or less lux

Applicable load

incandescent, exhaust fan, energy-saving lamp, fluorescent lamp

2. The Matters Needing Attention

  • Please shut off the power when installing the switch after operation in;
  • The switch in the dark to work, don't work during the day;
  • When installation to avoid glare, and light distance is greater than 0.5 m;
  • This switch is adapted to the light bulbs, energy-saving lamps, and the load power of 200 w or less.Do not short circuit, circuit wrong or overload use;
  • When this switch is installed into the wall type 1.2 2 m high, like a type suction a top height should be between 3 to 4 meters, otherwise affect the sensitivity of switch;
  • This product USES for three-wire system design of the connection mode, according to the national electrical standard, see chart;
  • Then good, after the power supply switch automatically first try, after a few seconds into the working state, our switch three years warranty in normal use.(not including artificial improper use)

3. Notes

Electrician or experienced human can install it.

The unrest objects cannot be regarded the installation basis-face.

In front of the detection window there are not hinder or unrest objects effecting detection.

4. Install The Chart
Ceiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy SavingCeiling Three Way Motion Sensor Light Switch Wiring Body Touch Energy Saving

5. How to proceed an order ?

Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.
