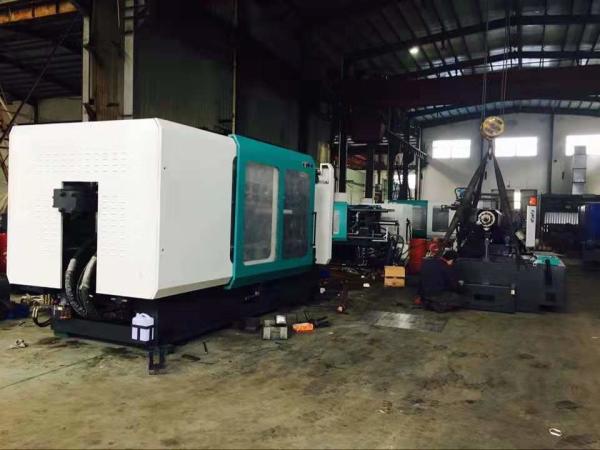

530 Ton Servo Large Injection Molding Machine With Intellectual Control Unit
530 Ton Servo Large Injection Molding Machine With Intellectual Control Unit
Specifications
Brand Name :
Taihong
Model Number :
HJF530
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
20sets/month
Delivery Time :
30days
Packaging Details :
Export standard
Injection weight :
1560~2614
Injection rate :
386~625
Clamp tonnage :
5300
Toggle stroke :
770
Space between tie bar :
820*800
Machine Dimension :
8.4*1.92*2.76m
Description

HJF-530 servo injection molding machine

Introduction:

1.Reliable plastic injection machine with servo motor ,equiped with servo motor , closed loop control for pressure and flow .Low noise,high precision and energy saving .

We design,manuafcture and supply our own brand of injection molding machine with clamping force ranged from 800kn to 30000kn, injection weight from 90g to 40000g, and can provide custom-built machine.

2.Inject all kinds of plastic parts, bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, ETC


Features of injection molding machine:

1.Equiped with servo motor ,

2.Closed loop control for pressure and flow .

3.Low noise,

4.High precision

5.Energy saving .

Electronically Controlled Unit

1. CPU controller and display are independent and reliable.

2. A larger color LCD screen enhances clear display and support multi-language compatibility.

3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.

4. A screen saver function extends the LCD life.

5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.

6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.

7. Closed loop PID barrel temperature control.

8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.

SPECIFICATION HJF-530
A B C

D

Speeial fruit basket
Screw diameter mm 75 80 85 100
Screw L/D Ratio L/D 22.7 21 20 17.5
Shot size(theoretical) cm³ 1727 1965 2218 2904
Injection weight(PS) g 1560 1788 2018 2614
Injection pressure Mpa 191 168 148 115
Injection rate g/s 386 442 499 625
Screw Speed rpm 130
Clamp tonnage KN 5300
Opening stroke mm 770
Space between the tie bars mm 820*800
Max.Mold Height mm 810
Min.Mold Height mm 330
Ejector stroke mm 240
Ejector tonnage KN 150
Max.pump pressure Mpa 16
Pump motor power KW 45
Heater power KW 31.4
Machine dimension(L*W*H) M 8.4*1.92*2.76
Machine weight T 20
Oil tank capacity L 900

Haijiang Machinery Main Configuration

Controller Arcuchi/Porchesion(50-290T)(China)
Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)
