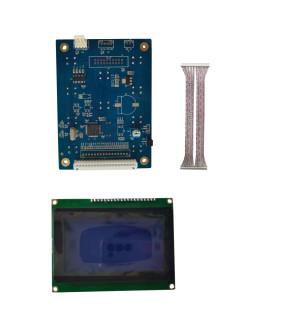

TX800 Inkjet printer board set USB2.0 Double Head For Photo Printer

Specifications

Brand Name :

BetterPrinter

Model Number :

U2FMB_V102,EFHB_V112

Place of Origin :

changsha, China

MOQ :

20 sets of

Payment Terms :

Bank transfer / WeChat / Alipay

Packaging Details :

Carton

Delivery Time :

3-10 work days

Main board specifications :

182mm*112mm

Head board specifications :

198mm*132mm

colour :

blue

Application nozzle model :

4720/W5113,I3200,TX800,XP600,DX5,DX7

Product name :

TX800 inkjet board kit

Feature :

Original and Brand New

After Warranty Service :

The warranty is for 12 months

Description

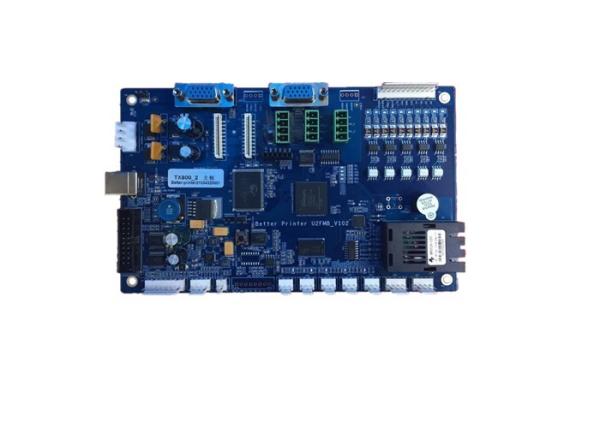

TX800 Optical fiber 2.0 Main Board Head board Inkjet Print Control System

USB2.0 optical fiber inkjet printing control system, application nozzle model: TX800, using optical fiber cable connection, fast transmission speed.
For photo machine inkjet printing, UV flatbed printing, textile thermal transfer, textile film transfer, double-station direct injection, etc., there are mature solutions.

Data interface	The 1.25G optical fiber is connected to the spray car board, and the USB2.0 cable is connected to the computer	Board support	Single head, double head, three head, four head, eight head, sixteen head, thirty-two head
Color channel	6 channels/6 colors	Trolley speed	1.2M/S
Number of nozzles	1080	Effective print width of print head	1 inches
Ignition frequency	30KHz	RIP-software	Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc.
Nozzle features	Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks	Application field	Advertising photo printing, UV coil, textile printing and other industries
Nozzle protection	Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection	Function support	Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc.

Application machine:

Photo machine,UV flatbed machine,Double-station direct printing machine, White ink scald transfer machine, etc.

Features of UV printing solution: easy to use and operate, no plate making and repeated color registration process, easy to operate and maintain. The use of environmentally friendly UV ink, spray and dry, stable printing, bright colors, high curing strength, low curing energy, environmental protection and no odor. The use of varnish can enhance the brightness effect of the image surface, and the adhesion of varnish on the surface of the image can also protect the image to a certain extent.

UV printing application materials: a wide range of UV printing printing materials, flexible media such as: time stamp, PVC, reflective film, canvas, carpet, leather, etc.; rigid media such as: glass, ceramic tiles, metal, ceiling, aluminum, wood, door, acrylic Board, plexiglass board, foam board, corrugated cardboard, etc.

The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.
