DX7 Double Head Usb2.0 Inkjet Printer System For UV Flatbed Printer

Specifications

Brand Name :

BetterPrinter

Model Number :

U2FMB_V102,EFHB_V112

Place of Origin :

Made in China

MOQ :

1 sets of

Payment Terms :

Bank transfer / WeChat / Alipay

Packaging Details :

Carton

Delivery Time :

3-10 work days

Main board specifications :

182mm*112mm

Head board specifications :

198mm*132mm

colour :

blue

Application nozzle model :

4720/W5113,I3200,TX800,XP600,DX5,DX7

Model :

DX7 Printhead

Printing Type :

Inkjet Printer

Type :

kit board

After Warranty Service :

The warranty is for 12 months

Description

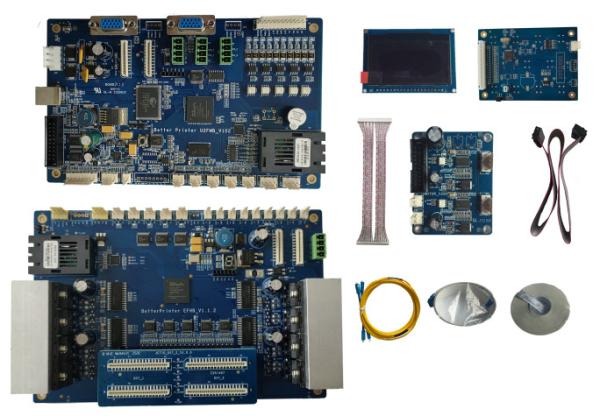

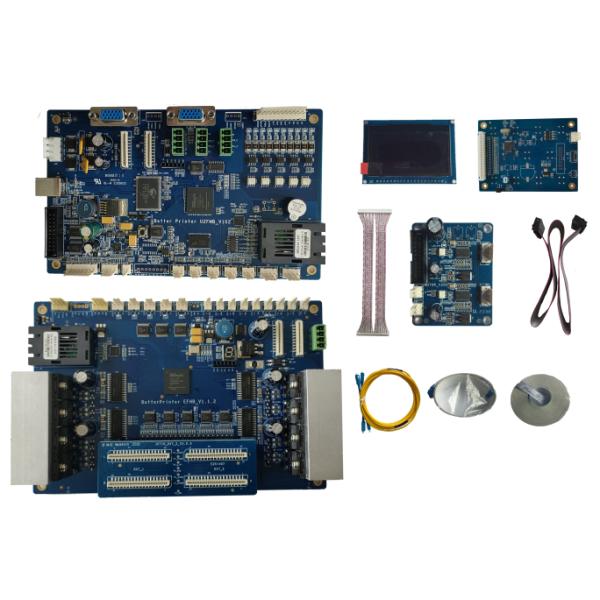

DX7 Fiber 2.0 Main board Head board Inkjet Print Control System

USB2.0 optical fiber inkjet printing control system, application nozzle model: DX7, using optical fiber cable connection, fast transmission speed.

For photo machine inkjet printing, UV flatbed printing, textile thermal transfer, textile film transfer, double-station direct injection, etc., there are mature solutions.

Name	USB2.0 fiber optic DX7 Inkjet Printer Board
Main board model	U2FMB_V102
Head board model	EFHB_V112
Nozzle model	Epson DX7
Function support	Anti-collision and continuous printing, automatic height measurement, variable point printing, device power failure and continuous printing, USB automatic reset, USB disconnection and continuous printing, paper out detection, ink stack self-check, etc.
Data interface	The 1.25G optical fiber is connected to the spray car board, and the USB2.0 cable is connected to the computer
Color channel	8 channels/8 colors
Number of nozzles	1440
Ignition frequency	30KHz
Nozzle features	Can print water-based, thermal transfer, paint, eco-solvent, UV and other inks
Nozzle protection	Nozzle reverse connection protection, stimulating nozzle (flash spray), short circuit protection
Board support	Single head, double head, three head, four head, eight head, sixteen head, thirty-two head
Trolley speed	1.2M/S
Effective print width of print head	1 inches
RIP-software	Mainstream RIP software such as Mengtai, Photoprint, Rui Cai, ONYX, Wasatch, etc.
Application field	Advertising photo printing, UV coil, textile printing and other industries
warranty period	One year (12 months)
transport	DHL

Application machine:

Photo machine,UV flatbed machine,Double-station direct printing machine, White ink scald transfer machine, etc.

UV printing is a high-tech, plate-free, full-color digital printing. It is not limited by materials. It can be used on metal, plastic, sliding doors, sliding doors, glass, plates, various signs, crystal, PVC, acrylic, stone, leather, etc. Color photo-level printing on the surface. There is no need to make a plate and complete the printing at one time, with beautiful and rich colors, abrasion resistance, UV protection, simple and convenient operation, fast printing image speed, and fully conform to industrial printing standards.

Features of UV printing solution: easy to use and operate, no plate making and repeated color registration process, easy to operate and maintain. The use of environmentally friendly UV ink, spray and dry, stable printing, bright colors, high curing strength, low curing energy, environmental protection and no odor. The use of varnish can enhance the brightness effect of the image surface, and the adhesion of varnish on the surface of the image can also protect the image to a certain extent.

The Photo machine prints the colorful patterns on the special materials with the printheads. It is generally used in advertising, graphics, and CAD industries. It has high precision and long life of the printhead. The photo machine solves the shortcomings of gray color and high machine purchase cost, And it can make a variety of inks for users, such as indoor and outdoor, widely used in many industries.
