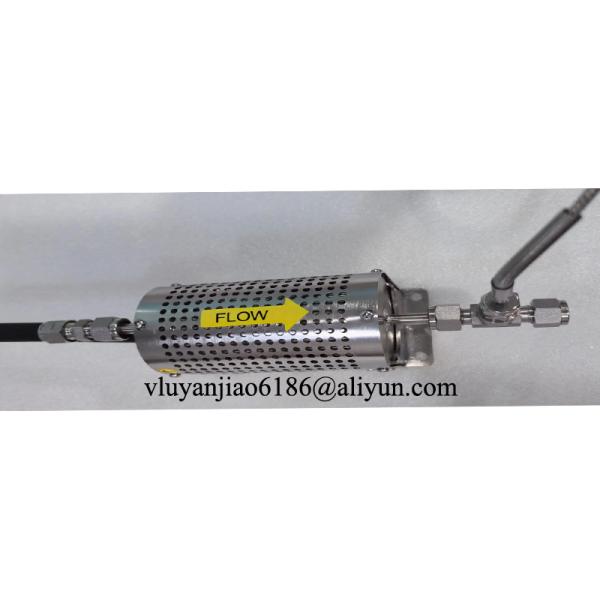

SUS Nitrogen Heater Stainless Steel N2 Heater for Wafer Drying And Parts Cleaning
SUS Nitrogen Heater Stainless Steel N2 Heater for Wafer Drying And Parts Cleaning
SUS Nitrogen Heater Stainless Steel N2 Heater for Wafer Drying And Parts Cleaning
SUS Nitrogen Heater Stainless Steel N2 Heater for Wafer Drying And Parts Cleaning
Specifications
Brand Name :
Surplus
Model Number :
Stainless Steel N2 Heater 01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Contact Us
Payment Terms :
TT, Paypal, Western Union
Supply Ability :
50 PC/Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case or Carton Box
Name :
High Purity Wafer Drying And Parts Cleaning Semiconductor Stainless Steel N2 Heater
Material :
SUS
Application :
suitable for nitrogen, CDA (Clean Dry Air) or other high purity, inert gases
Wetted Surface :
316L Stainless Steel Electropolish
Sizes :
375 – 3000 Watts (Dependent on Voltage)
Voltages :
120 VAC to 240 VAC 1-Phase (Dependent on Wattage)
Description

High Purity Wafer Drying And Parts Cleaning Semiconductor Stainless Steel N2 Heater

SUS Nitrogen Heater Stainless Steel N2 Heater for Wafer Drying And Parts Cleaning

Overview

For high purity wafer drying and parts cleaning, the Stainless Steel N2 Heater is suitable for nitrogen, CDA (Clean Dry Air) or other high purity, inert gases. Constructed with an electropolished 316L stainless steel housing, the housing’s passivated wetted surfaces ensures compatibility with most process fluids. Additional features include a compact design for reduced footprint and a replaceable heater element. It is also available in a variety of models ranging from 375 watts to 3,000 watts.

Built-In Safety

There are a number of safety features incorporated into the stainless N2 heater. For example, the heater features high limit and process thermocouples to regulate and maintain temperature. Furthermore, there is also a thermal cut-off sensor to prevent overheating, and an electrical ground wire. Finally, there is an additional option for the heater to feature a microprocessor-based temperature controller in a NEMA-rated external switching chassis.

Highlights

The stainless N2 heater comes in various sizes, ranging from 375 to 3,000 watts (dependent on customer voltage) and from 120 VAC to 240 VAC, 1-phase (dependent on wattage). Several units may also be used in-series for higher wattage and flow capacities. Ambient temperature is 200ºC (392º F), with a pressure of 60 PSIG at 200º C.

Features & Benefits

  • 316L stainless steel electropolished and passivated wetted surfaces
  • Sanitary fitting eliminates threads to reduce particle entrapment and potential bacteria growth
  • Compact design offers ~13-inch height
  • Easy installation with a plug-and-play system
  • Microprocessor-based temperature controller in NEMA-rated external switching chassis
  • Flexible solutions offering a variety of power requirements, models, and options
  • No N2 purge required

Options

  • Enclosure for Heater
  • Fittings Input/Output (Various Sizes Available)
  • Heater Design to be Upside Down for System Drainage
  • Additional Safeties Available
  • Dry Contact on Controls

Specifications

Heater
N2 SS Heater
Wetted Surface
316L Stainless Steel Electropolish
Sizes
375 – 3000 Watts (Dependent on Voltage)
Voltages
120 VAC to 240 VAC 1-Phase (Dependent on Wattage)
Temperature
392°F (200°C)
Pressure
60 PSIG at 200°C
