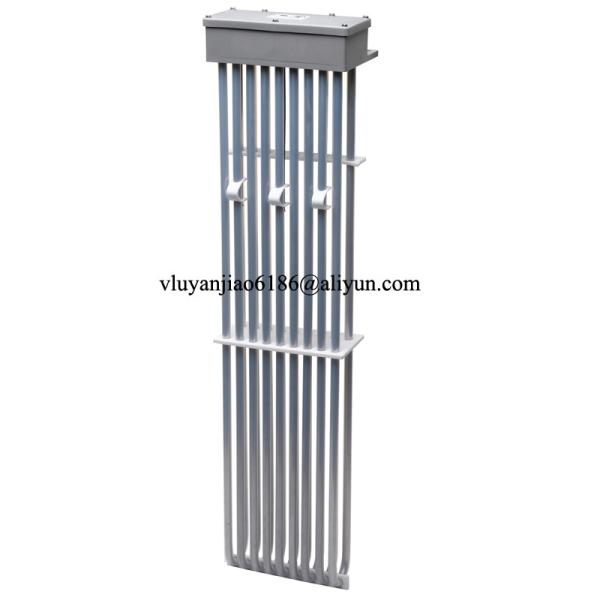

3 Phase Over The Side PTFE Immersion Heaters Nine Element Fluoropolymer Heater
3 Phase Over The Side PTFE Immersion Heaters Nine Element Fluoropolymer Heater
Specifications
Brand Name :
Surplus
Model Number :
PTFE immersion Heater 10
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Contact Us
Payment Terms :
TT, Paypal, Western Union
Supply Ability :
50 PC/Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case or Carton Box
Name :
Nine Element Fluoropolymer (PTFE) 3 Phase Over the Side Immersion Heaters
Supply voltage (V/Phase): :
110V-480V
Power(KW) :
1KW-6KW
Type of temperature control :
Overheat protection
Application :
Acid Heating And Corrosive Chemical Heating
Frame Material :
PTFE
Inside material :
SUS
Cable length :
2 meters/3meters/others
Description

Nine Element Fluoropolymer (PTFE) 3 Phase Over the Side Immersion Heaters

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

  • FEATURES

    • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).

    • Low watt density design 10 watts/square inch (1.5w/cm²).

    • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.

    • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).

    • Certification: cULus. CE certified and CSA

  • SPECIFICATIONS

    • 3000 - 18000 watts

    • 120 to 600 volts (600 volts on 12,000 watts or lower only)

  • OPTIONS AVAILABLE (CONSULT FACTORY)

    • Resettable thermal protectors

    • Polypropylene guards (sold separately)

    • Custom configurations and lengths

    • Custom wire and conduit lengths

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

  • OPTIONS AVAILABLE (CONSULT FACTORY)

    • Resettable thermal protectors

    • Polypropylene guards (sold separately)

    • Custom configurations and lengths

    • Custom wire and conduit lengths

3 Phase Over The Side PTFE Immersion Heaters Nine Element Fluoropolymer Heater

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

Others Applications

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.
