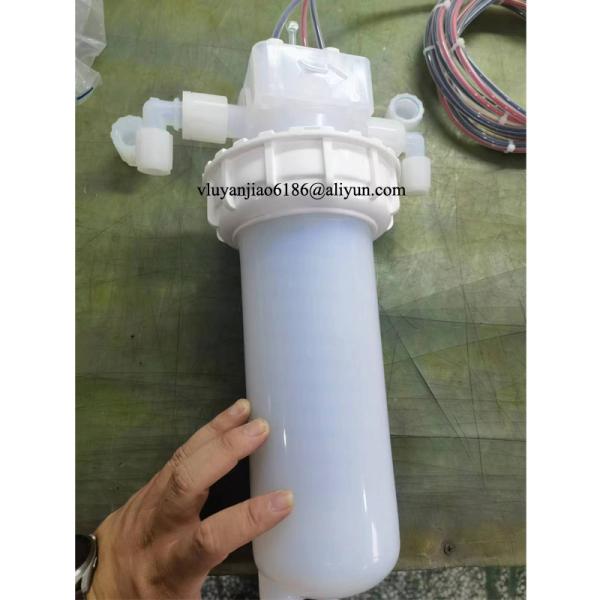

10 inches 220V 1P 3KW PFA Inline Chemical Heater With Temperature Control System
10 inches 220V 1P 3KW PFA Inline Chemical Heater With Temperature Control System
10 inches 220V 1P 3KW PFA Inline Chemical Heater With Temperature Control System
10 inches 220V 1P 3KW PFA Inline Chemical Heater With Temperature Control System
Specifications
Brand Name :
Surplus
Model Number :
Inline chemical Heater 05
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 PC/Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case or Carton Box
Name :
10 inches 220V 1P 3KW PFA Inline Chemical Heater With Temperature Control System
Voltage :
230V(Customizable)，Single Phase
Power :
3KW
Material :
PFA Housing
Heater Applications :
heating deionized water, acids, and less aggressive process chemistries use in high-purity processes of semiconductor, solar, MEMS manufacturing, and other industries using high-purity fluids.
Market :
Semiconductor
Description

10 inches 220V 1P 3KW PFA Inline Chemical Heater With Temperature Control System

Overview

PFA in-line heater are desinged for hydrofluoric acid (HF), potassium hydroxide (KOH), and other chemistry compatible with PFA.

These PFA heaters push widely accepted high-purity materials to operating extremes while maximizing performance and reliability.

We has once again taken heating of high-purity liquids to a new level of performance and reliability.

We has once again taken heating of high purity liquids to a new level of performance and reliability. Heating liquids using high purity materials in a harsh environment requires special skills and knowledge that can only be gained from experience. For over 40 years, Our Engineers have been refining and improving the heated quartz bath and understand the critical needs of the Semiconductor and related industries. The sum of that knowledge has been incorporated into the PFA in-line heater to create products that not only perform, but simplify installation and maintenance as well. Exemplified by our long-standing ISO 9001 registration, our dedication to manufacturing process control assures that our customers receive uniformly high-quality products in a timely manner. We offers a wide range of standard and custom models to allow for easy integration into almost any application.

Features

  • No O-Ring seals
  • All wetted surfaces are high purity PFA
  • PTFE housing for double containment
  • Maximized watt density for performance
  • Light weight construction
  • Small foot print enabled by unique design
  • Zero maintenance required
  • PFA fluid path, wide chemistry compatibility
  • High temperature capability 200°C+

Specifications

Heater
PFA In-line Chemical Heater
Wattages
1.5-12 kW
Process Chemistries
Dilute Hydrofluoric acids (DHF),
Buffered Hydrofluoric acids (BHF),
Buffered Oxide etch (BOE),
Alkaline Chemicals (TMAH, KOH, NAOH),
Fluorinated Solvents,
Hydrofluoric Acid,
Glycol, and much more.
Max Operating Temperature
180°C (consult factory
for higher temperatures)
Max Pressure
40 psi at 180°C
Voltages
200-400VAC,
single or 3 phase
model dependent

Industries

  • Semiconductor Fabrication
  • Solar Cell Manufacturing
  • Flat-Panel Display, LEDs & Electronics
  • Chemicals Manufacturing
  • Industrial Manufacturing

Applications

Chemical Heating

Fluoropolymer (PTFE) heater and heating components are engineered with protection from corrosive chemicals while maintaining the highest quality and safety standards.

Chemical Heating(2)

HXT SERIES – SCREWPLUG
Low watt density, spiral screwplug heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

10 inches 220V 1P 3KW PFA Inline Chemical Heater With Temperature Control System

HXOL SERIES
Low watt density, flexible riser, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

10 inches 220V 1P 3KW PFA Inline Chemical Heater With Temperature Control System
