Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry
Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry
Specifications
Brand Name :
Surplus
Model Number :
PTFE immersion Heater 19
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Contact Us
Payment Terms :
TT, Paypal, Western Union
Supply Ability :
50 PC/Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case or Carton Box
Name :
Fluoropolymer(PTFE) Electric Immersion Heater For Semiconductor And Pharmaceutical Industry
Supply voltage (V/Phase): :
110V-480V
Power(KW) :
1KW-36KW
Type of temperature control :
Overheat protection
Application :
Acid Heating And Corrosive Chemical Heating
Frame Material :
PTFE
Inside material :
SUS
Cable length :
2 meters/3meters/others
Description

Fluoropolymer(PTFE) Electric Immersion Heater For Semiconductor And Pharmaceutical Industry

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

  • FEATURES

    • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).

    • Low watt density design 10 watts/square inch (1.5w/cm²).

    • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.

    • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).

    • Certification: cULus. CE certified and CSA

  • SPECIFICATIONS

    • 3000 - 18000 watts

    • 120 to 600 volts (600 volts on 12,000 watts or lower only)

  • OPTIONS AVAILABLE (CONSULT FACTORY)

    • Resettable thermal protectors

    • Polypropylene guards (sold separately)

    • Custom configurations and lengths

    • Custom wire and conduit lengths

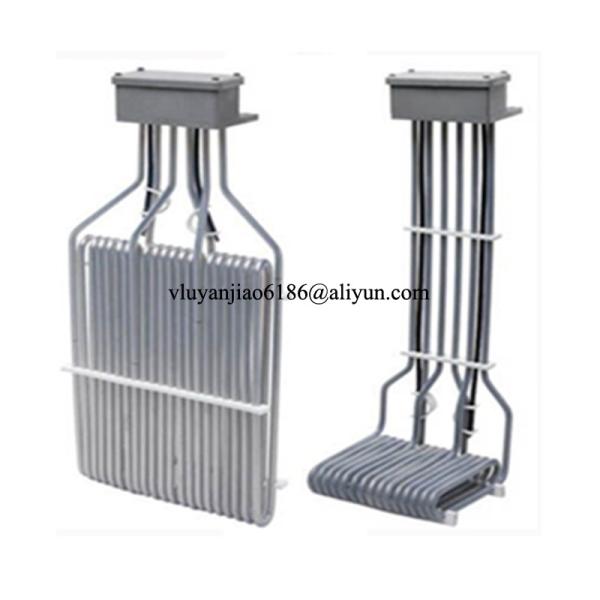

FLAT ASSEMBLY TYPE – PTFE Immersion Heater

  • Universal ‘all plastic’ model

  • Ideal for important powers (from 6kW)

  • Up to 48 kW

  • Ideal for large tanks

Universal model for all types of installation such as side of tank, bottom of tank with feet or on slidings.
Rigid structure ideal for important powers.

Assembly type F
On a plastic rod frame PVDF or PP.
Standard configuration : heating cable coated Teflon® FEP and PP or PVDF rod frame.
For use on the side or at the bottom of the tank.

Others Applications

Ultra-High-Purity Heating
Designed with Ultra-High-Purity processes in mind, Surplus delivers clean-room assembled, reliable heating and power solutions to fit specific needs.

Products For Ultra-High-Purity Heating

Inline Heater

Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

PFA Inline Heater

Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

Inline Chemical Heater

Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

Acid Heating And Corrosive Chemical Heating(1)
3HX SeriesElectric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

HXT SERIES – SCREWPLUG

Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

9HX SERIES

Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

6HX SERIES

Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

 3HXOL SERIES Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

HXSL SERIES

Electric Fluoropolymer PTFE Immersion Heaters For Semiconductor Pharmaceutical Industry

PTFE Tanks

We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used : PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.

Can store acid or alkali
high temperature resistance
Can custom sizes or even install PFA outlet and PFA inlet
