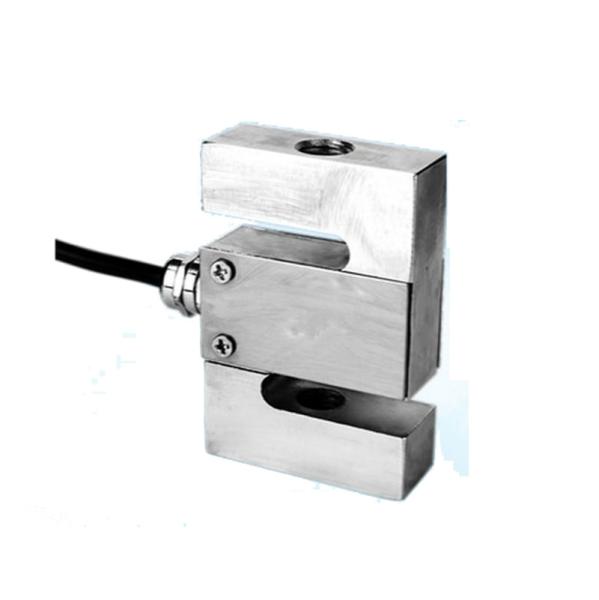

Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006
Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006
Specifications
Place of Origin :
China Load Cell/Force Sensor
Brand Name :
Innovation
Model Number :
IN-MS-006
MOQ :
1 PCS
Price :
USD1-USD100
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
7-15 days
Packaging Details :
carton
Material :
Alloy Steel/Stainless Steel
Capacity :
10-5000KG Load Cell
Description

Alloy steel/Stainless Steel Tension S Type Load Cell IN-MS-006

Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006

Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006

Capacity 10-5000KG Material Alloy steel/Stainless Steel
Rated Output 2.0/3.0±10%mV/V Output Impedance 350±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.03%F.S. Recommended Excitation 5-10V
Hysteresis 0.03%F.S. Maximum Excitation 15V
Repeatability 0.03%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.03%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.025%F.S./10ºC Safe Load Limit 150%
Temp Effect on Zero 0.025%F.S./10ºC Ultimate Load Limit 200%
Input Impedance 385±5Ω Cable Size φ5x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
