Alloy Steel Stainless Steel 50KG-10T Tension S Type Load Cell IN-MS-007
Alloy Steel Stainless Steel 50KG-10T Tension S Type Load Cell IN-MS-007
Specifications
Place of Origin :
China
Brand Name :
Innovation
Model Number :
IN-MS-007
MOQ :
1 pc
Price :
USD1-USD1000
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
7-15DAYS
Packaging Details :
CARTON
Description

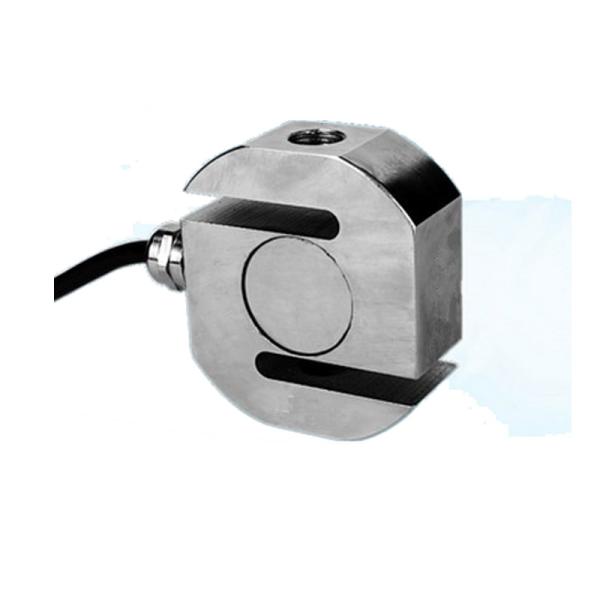

IN-MS-007 Alloy steel Stainless Steel 50KG-10T Tension S Type Load Cell

Alloy Steel Stainless Steel 50KG-10T Tension S Type Load Cell IN-MS-007

Load Cell Dimension:

Alloy Steel Stainless Steel 50KG-10T Tension S Type Load Cell IN-MS-007


Load Cell Technical Parameter:

Capacity 50KG-10T Material /Alloy steel/Stainless Steel
Rated Output 2.0±5%mV/V Output Impedance 350±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.03%F.S. Recommended Excitation 5-10V
Hysteresis 0.03%F.S. Maximum Excitation 15V
Repeatability 0.03%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.03%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.025%F.S./10ºC Safe Load Limit 150%
Temp Effect on Zero 0.025%F.S./10ºC Ultimate Load Limit 200%
Input Impedance 385±20Ω Cable Size φ5x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
