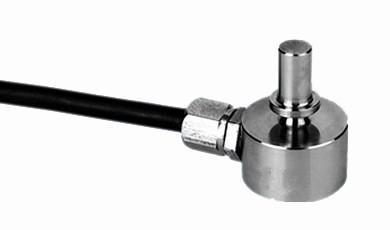

Screw Tension and Compression Force Sencor Load Cell IN-MT-013A
Screw Tension and Compression Force Sencor Load Cell IN-MT-013A
Specifications
Place of Origin :
China
Brand Name :
Innovation
Model Number :
IN-MT-013A
MOQ :
1 pc
Price :
USD1-USD100
Payment Terms :
L/C, T/T
Supply Ability :
USD1-USD100
Delivery Time :
7-15days
Packaging Details :
carton
Description

Screw Tension and Compression Force Sencor Load Cell IN-MT-013A

Screw Tension and Compression Force Sencor Load Cell IN-MT-013A

LOAD CELL DIMENSIONS:

Screw Tension and Compression Force Sencor Load Cell IN-MT-013A

LOAD CELL PARAMETERS:

Capacity 5-50kg Material Stainless Steel
Rated Output 1.0-1.5mV/V Output Impedance 350±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 1.0-5%F.S. Recommended Excitation 2.5-5V
Hysteresis 1.0%F.S. Maximum Excitation 10V
Repeatability 1.0%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.1%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1 %F.S./10ºC Ultimate Load Limit 150%
Input Impedance 350±5Ω Cable Size φ(2-3)x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
