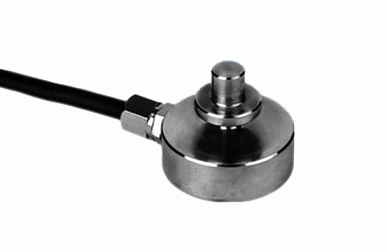

Screw Tension and Compression Force Sencor Load Cell IN-MT-020
Screw Tension and Compression Force Sencor Load Cell IN-MT-020
Specifications
Place of Origin :
China
Brand Name :
Innovation
Model Number :
IN-MT-020
MOQ :
1 pc
Price :
USD1-USD100
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
7-15DAYS
Packaging Details :
CARTON
Description

Screw Tension and Compression Force Sencor Load Cell IN-MT-020

Mainly applied in tension and compression testing instruments , automatic equipments and testing fields,
such as insertion force test instruments,riveting machine,welding machine,hot & cold lamination machine,
feeling tester for keyboard switch, and etc.

Screw Tension and Compression Force Sencor Load Cell IN-MT-020

Load Cell Dimensions:

Screw Tension and Compression Force Sencor Load Cell IN-MT-020

Load Cell Parameters:

Capacity 5-50kg Material Stainless Steel
Rated Output 1.0-1.5 mV/V Output Impedance 1000±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.5%F.S. Recommended Excitation 5-10V
Hysteresis 0.5%F.S. Maximum Excitation 15V
Repeatability 0.5%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.05%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 150%
Input Impedance 1000±5Ω Cable Size φ3x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
