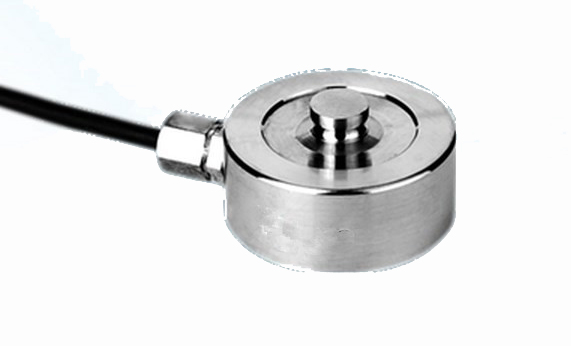

Stainless Steel Mini Force Sensor IN-MI-020
Stainless Steel Mini Force Sensor IN-MI-020
Specifications
Place of Origin :
China
Model Number :
IN-MI-020
Brand Name :
Innovation
MOQ :
1 pc
Price :
USD1-USD100
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
7-15DAYS
Packaging Details :
CARTON
Description

Stainless Steel Mini Force Sensor IN-MI-020
Force measurement in small space installation,such as feeling tester for keyboard switch,
compression force measurement for hot and cold lamination machine,
and grasping force measurement for robotic hands

Stainless Steel Mini Force Sensor IN-MI-020

Force Sensor Dimensions:

Stainless Steel Mini Force Sensor IN-MI-020

Modle B C D E F G H I J K SR Weight
MI-020-4M 5-500KG 11 8.5 5 4-M2.5Deep5 16.5 3.2 7.5 5 2 5.7 20
1-2T 11 8.5 6 4-M2.5Deep5 16.5 3 7.5 5 2 5.7 20
MI020-H5-4M 50-100KG 5 4.5 2.5 4-M2.5 16.5 1.7 0 0 2 0 10


Force Sensor Parameters:

Capacity 5~2000kg Material Stainless Steel
Rated Output 1.0-1.5mV/V Output Impedance 350(700)±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.5%F.S. Recommended Excitation 2.5-5V
Hysteresis 0.5%F.S. Maximum Excitation 5V
Repeatability 0.5%F.S. Compensated Temp Range -10~60ºC
(30)Creep (30min) 0.1%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 150%
Input Impedance 350(700)±5Ω Cable Size φ(2-3) x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
