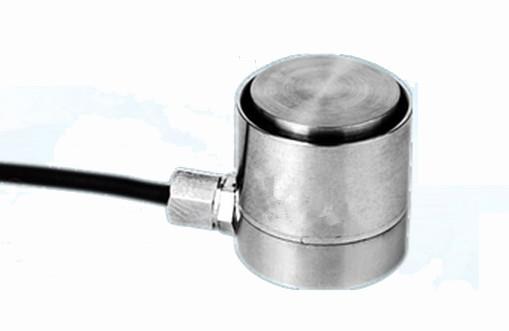

Mini Stainless Steel 10KN~150KN Force Sensor IN-MI-0305
Mini Stainless Steel 10KN~150KN Force Sensor IN-MI-0305
Specifications
Model Number :
IN-MI-0305
Place of Origin :
China
Brand Name :
Innovation
MOQ :
10 pcs
Price :
USD1-USD1000
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
7-15DAYS
Packaging Details :
CARTON
Description

Mini Stainless Steel 10KN~150KN Force Sensor IN-MI-0305

Mini Stainless Steel 10KN~150KN Force Sensor IN-MI-0305

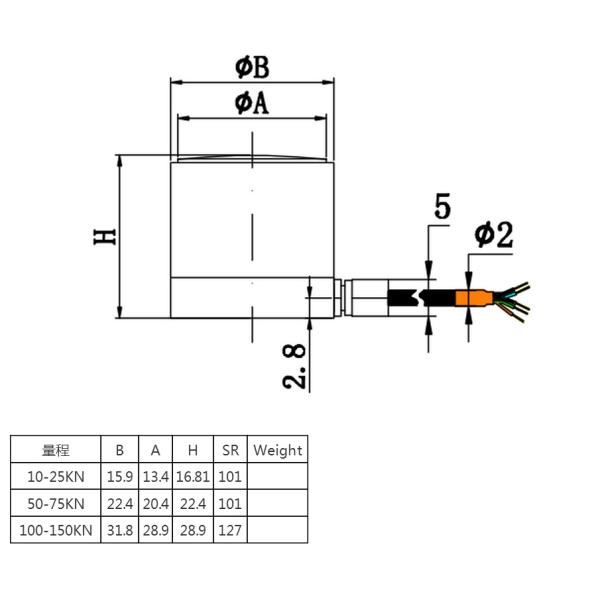

LOAD CELL DIMENSIONS:

Mini Stainless Steel 10KN~150KN Force Sensor IN-MI-0305

LOAD CELL PARAMETERS:

Capacity 10KN~150KN Material Stainless Steel
Rated Output 1.5-2.0mV/V Output Impedance 350±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 1.0%F.S. Recommended Excitation 5V
Hysteresis 1.0%F.S. Maximum Excitation 10V
Repeatability 1.0%F.S. Compensated Temp Range -10~60ºC
Creep (30min) 0.05%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.05%F.S./10ºC Safe Load Limit 150%
Temp Effect on Zero 0.05%F.S./10ºC Ultimate Load Limit 200%
Input Impedance 385±5Ω Cable Size φ2 x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
