China wholesale 0.2-2t Mini Force Sensor IN-MI-050
China wholesale 0.2-2t Mini Force Sensor IN-MI-050
Specifications
Place of Origin :
China
Brand Name :
Innovation
Model Number :
IN-MI-050
MOQ :
10 pcs
Price :
USD1-USD100
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
7-15DAYS
Packaging Details :
CARTON
Description

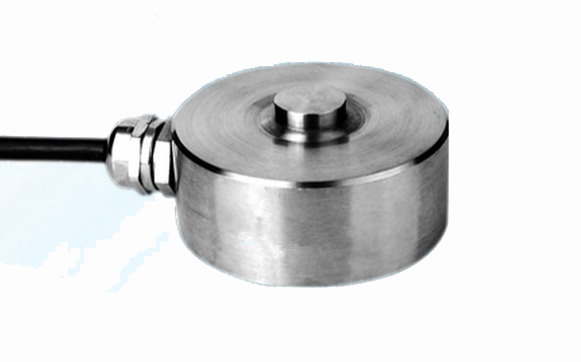

Mini Force Sensor IN-MI-050

Force measurement in small space installation,such as feeling tester for keyboard switch,
compression force measurement for hot and cold lamination machine,
and grasping force measurement for robotic hands
China wholesale 0.2-2t Mini Force Sensor IN-MI-050
Load Cell Dimensions:
China wholesale 0.2-2t Mini Force Sensor IN-MI-050
Load Cell parameters:

Capacity 0.2-2t Material Stainless Steel
Rated Output 1.5-2.0mV/V Output Impedance 700±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.5%F.S. Recommended Excitation 5-10V
Hysteresis 0.5%F.S. Maximum Excitation 15V
Repeatability 0.5%F.S. Compensated Temp Range -10~60ºC
Creep (30min) 0.05%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.05%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.05%F.S./10ºC Ultimate Load Limit 150%
Input Impedance 750±15Ω Cable Size φ4x3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
