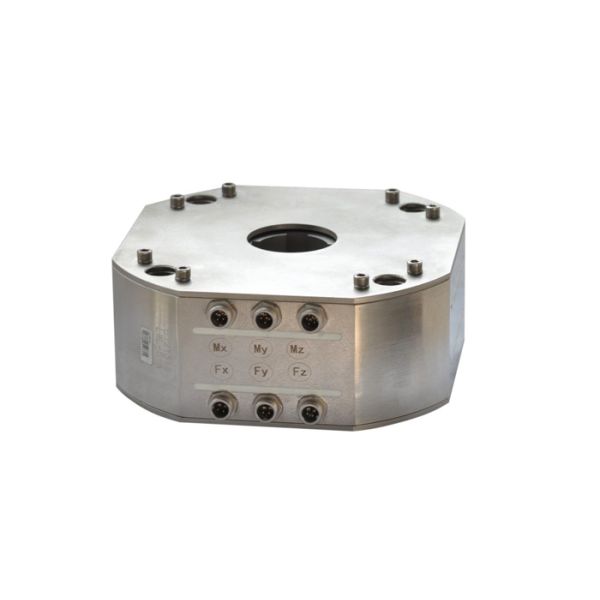

LOAD CELL for Automation Equipment, Robot Manufacturing, Material Testing Equipment IN-LWL5t
LOAD CELL for Automation Equipment, Robot Manufacturing, Material Testing Equipment IN-LWL5t
Specifications
Place of Origin :
China
Model Number :
IN-LWL5t
Description

LOAD CELL for Automation Equipment, Robot

Manufacturing, Material Testing Equipment

LOAD CELL for Automation Equipment, Robot Manufacturing, Material Testing Equipment IN-LWL5t

Load Cell Dimension

LOAD CELL for Automation Equipment, Robot Manufacturing, Material Testing Equipment IN-LWL5t

Load Cell Technical Parameter

Items UNIT TECHNICAL DATA
Rated capacities(Emax) t 5
Sensitivity mV/V 1.0±0.1
Total error F.S ≥3%
Creep error(30min) F.S ±0.1%
Zero balance F.S ±1%
TCO F.S/℃ ±0.1% / 10
TC SPAN F.S/℃ ±0.1% / 10
Input impedance Ω 400±20
Output impedance Ω 352±3
Insulation impedance MΩ ≥5000
Temperature range, operating ℃ -30~ +70
Maximum safe overload F.S 150%
Ultimate overload F.S 200%
Excitation, recommend V 10-12V DC
Excitation, maximum V 15V DC
Protection class IP67
Construction Alloy Steel
Wiring Exc+(Red) Exc-(Black) Sig+(Green) Sig-(White)
