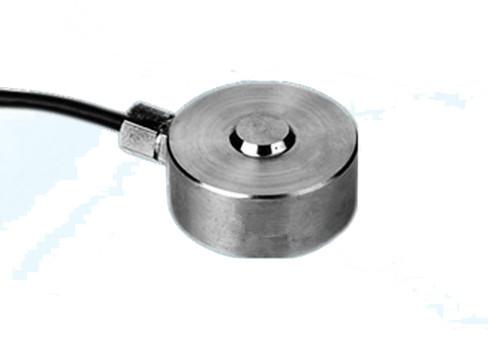

Stainless Steel 5~500kg Mini Force Sensor IN-MI-019
Stainless Steel 5~500kg Mini Force Sensor IN-MI-019
Specifications
Brand Name :
Innovation
Model Number :
IN-MI-019
Place of Origin :
China
MOQ :
10 PCS
Price :
USD1-USD100
Payment Terms :
L/C, T/T
Supply Ability :
1000PIECES/MONTH
Delivery Time :
7-15DAYS
Packaging Details :
CARTON
Material :
Stainless Steel
Capacity :
5~500kg
Description

Stainless Steel 5~500kg Mini Force Sensor IN-MI-019

Stainless Steel 5~500kg Mini Force Sensor IN-MI-019

Force measurement in small space installation, such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands

Stainless Steel 5~500kg Mini Force Sensor IN-MI-019

Capacity 5~500kg Material Stainless Steel
Rated Output 1.0-1.5mV/V Output Impedance 350(1000)±3Ω
Zero Balance ±2%F.S. Insulation ≥5000MΩ/100VDC
Non-linearity 0.5-1.0%F.S. Recommended Excitation 2.5-5V
Hysteresis 0.5%F.S. Maximum Excitation 5V
Repeatability 0.5%F.S. Compensated Temp Range -10~60ºC
Creep (30min) 0.1%F.S. Operating Temp Range -20~80ºC
Temp Effect on Output 0.1%F.S./10ºC Safe Load Limit 120%
Temp Effect on Zero 0.1%F.S./10ºC Ultimate Load Limit 150%
Input Impedance 350(1000)±10Ω Cable Size φ2 x 3m
Wire Connection Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White
