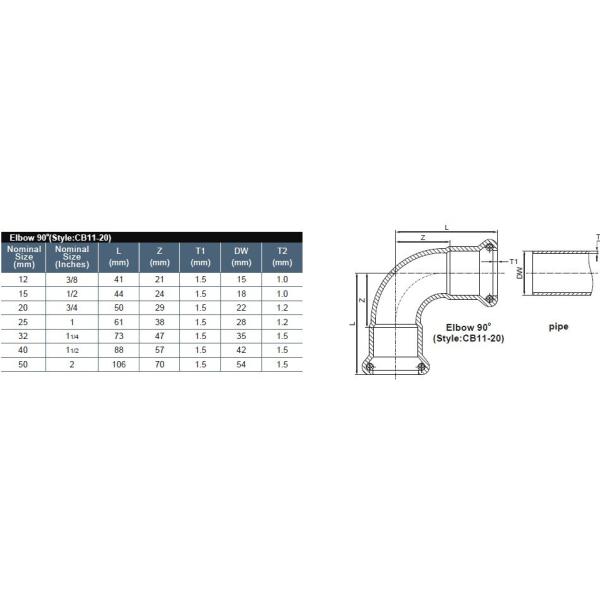

Carbon Steel Press Fittings-Bend 90/Elbow

Galvanized Carbon Steel Bend 90

1. material: carbon steel Q235A.

2. size: 3/8-2inch or as request, pipe wall thickness: 1.0--2.0mm

3. fitting standard: DVGW W534-1995

4. O-Ring Seal material:

EPDM(black): max working pressure 1.6Mpa, working temperature from -15 to 110, Suit medium: cold and hot water, compressed Air etc.

5. galbanization: all carbon steel pipe fittings are plated with rust-resistant zinc.

6. payment term : TT, L/C way of transportation: FOB,CIF,CNF.

7. Anneal: all stainless steel pipe fittings are annealed in inert gases before packing.

8, It is usually used in connecting the fitting and water-supply. Also it can be used in transporting drining water, hot water, oil, gas, and so on. And easy operated and widely use is to be favourate for everyone. When you built a building you must use cross, why not chose our product and we will supply a competitive price and high quality for you.

The Zhengkang Press fitting System in carbon steel is indicated for use in various types of civil and industrial installations where the stainless steel pipe work is not required.

Typical applications are:
- closed-circuit water heating and cooling systems
- compressed air and inert gas systems
- sprinkler systems

The o-ring gaskets made of black EPDM, are resistant to aging, heat and chemical additives and are therefore particularly suitable for all types of treated water.

Conditions of use
- Maximum operating pressure: 16 bar
- Operating temperature: - 20 °C + 85 °C
- Maximum temperature: 120 °C

ABOUT US

The only one factory in Chinese light gauge field owns the advanced Chinese and alien technologies of pluming and heating systems including the press systems, bulging system, groove systems.

The only one factory in china producing both M-type( same with Mapress) and V-type(same with Viega) two kinds press systems, including the totally production process of making the raw material cold rolled coil/strip, welded pipes and press fittings.

Besides, we have developed our patented products-bulging system, which is highly appreciated by society, solving many technological problems successfully, such as the difficulty of the site construction restraining the development of light gauge SS pipelines, the strict high requirement of constructors, the limit of ordinary repairing, the slowness of assembling, etc.

Application: Our light gauge stainless steel pipeline systems are widely used in all kings of pluming and heating supply, been applied in varieties of biggest worldwide Chinese projects, like the 2008 Beijing Olympic Game Nest Stadium water supply, 2009 Guangzhou Asian Game City water supply, 2010 Shanghai World Expo Chinese Pavilion, and many other government buildings, classy hospitals, star hotels water supply projects.
