12kV Indoor Medium Voltage Transformer PT With Fuse IEEE Bushing Enclosed
12kV Indoor Medium Voltage Transformer PT With Fuse IEEE Bushing Enclosed
12kV Indoor Medium Voltage Transformer PT With Fuse IEEE Bushing Enclosed
12kV Indoor Medium Voltage Transformer PT With Fuse IEEE Bushing Enclosed
Specifications
Brand Name :
Chuangyin
Model Number :
JSZV18-24RJ
Certification :
Kema,CE,SGS,TUV
Place of Origin :
Shenzhen
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
36,000,00pcs per year
Delivery Time :
Within 7 days
Packaging Details :
Carton packing for one sets, one set including three piece with Components
Feature :
Improve the Filth and Moisture Resistance
Highest Voltage for Equipment :
24KV
Termal Limit Output :
2500VA
Rated Primary Voltage :
20/22KV
Technical Standard :
0.2；0.5；1;0.2/0.2;0.2/0.5;0.2/6P;0.5/6P
Rated Insulation Level :
24/50/150KV
Type :
Three-Phase
Standard :
IEEE
Description

12kV Indoor Medium Voltage Transformer PT Epoxy Resin Type with fuse IEEE Bushing Enclosed Support Construction for Switchgear


1. Product Introduction:

JSZV18-24RJ voltage transformer, is fully enclosed casting insulation structure, the primary winding, secondary winding and the annular core all coating in the epoxy resin casting, The product adds elbow type plug part, improving the filth and moisture resistance, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest voltage for equipment 24 kV

Main technical parameter

1. Rated primary voltage: 20kV or 22kV

2. Rated secondary voltage:100V,100/100V,100/220V

3. Rated voltage of residual voltage windings:100/ 3V ,110/ 3V, 115/ 3V, 120/ 3V

4. Burden power factor: cosΦ=0.8(lagging)

5. Standards: IEC60044-2.2003 or IEC61869-1&3

Other technical parameters pls see as follow:

Type

Rated primary

voltage (kV)

 Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

 Rated insulation level(kV)
JSZV18-24RJ

20

22

0.1

0.11

 0.2 40 2000 24/50/150
0.5 80
1 100

0.1/0.1

0.11/0.11

 0.2/0.2 20/20 500/500
0.2/0.5 20/30

0.1/0.22

0.11/0.22

 0.2/6P(3P) 50/800 800/2000
0.5/6P(3P) 50/800

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

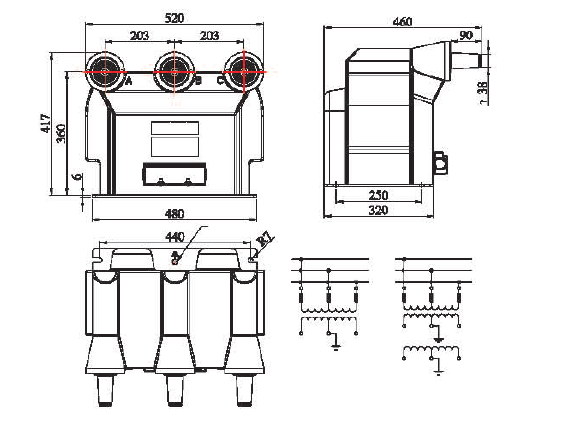

Outline drawing
