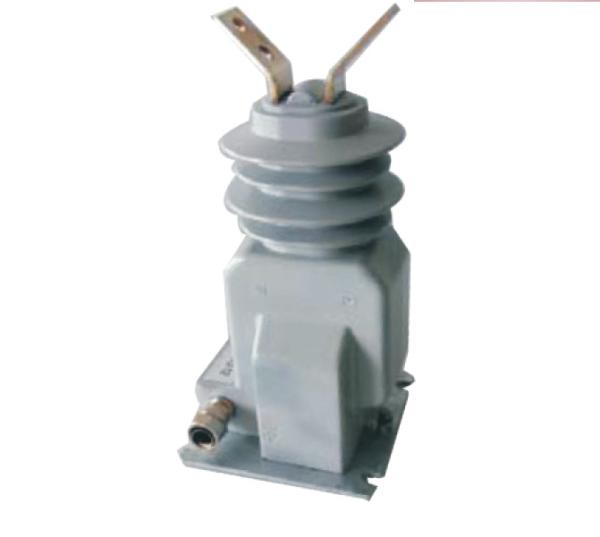

12/24/36kV Medium Voltage Transformer IEC Bushing Metallic Coating Touch Proof Wound Safety And Isolating Energy


1. Product Introduction:

Voltage transformer adopts fully enclosed casting insulation structure, which encloses the primary and secondary winding and the toroldal core In the epoxy resin casting body to Improve the filterability and moisture resistance. The product plug part Is designed to conform to the B type Inner cone (EN 50181). The overall structure is designed to be fully shielded surface. It is used indoor for measuring voltage, electric energy and protective relaying In single-phase or three-phase AC circuit with the frequency 50Hz or
60Hz and highest voltage for equipment 36kV.

Main technical parameter

1. Installation site: Indoor
2. Rated frequency: 50/60Hz
3. Load power factor: cos'=0.8 (lagging)
4. Technical standard accords with: I E C 60044-2
IEC 61869-183

Item Specification Unit Data
1 Um kV Up to 36
2 Rated Insulation Level kV Up to 36/70/170
3 Rated Primary Voltage V

33000/√3

22000/√3

11000/√3
4 Rated Secondary Voltage V 110/√3 or 110/√3

Type

Rated primary

voltage (kV)

 Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

 Rated insulation level(kV)
JDZX11-12/24/36PC

11/√3

22/√3

33/√3

 0.11//√3 0.2 20 300

24/50/125
0.5 50
1 80
0.11/√3/0.11/3
 0.2/6P(3P) 150
25/50
0.5/6P(3P) 50/50

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

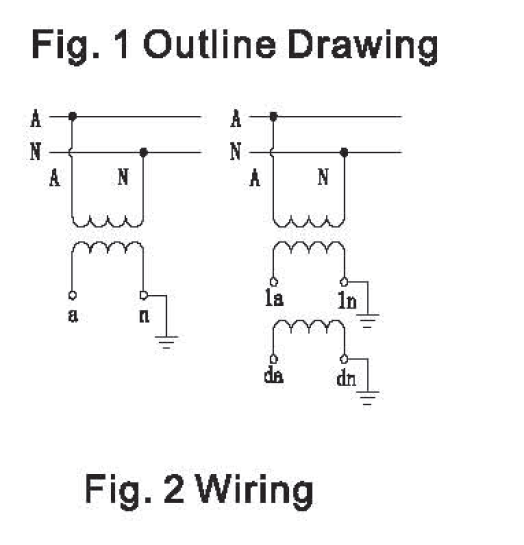

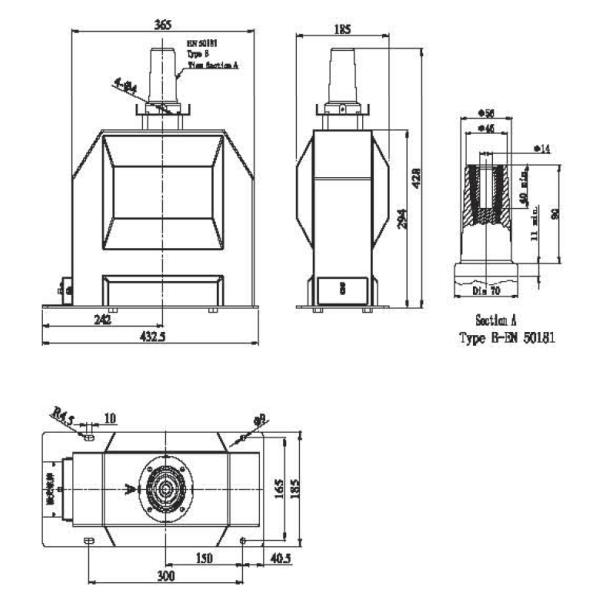

Outline drawing
