JDZX16-12R 12kV Indoor Single-Phase Transformer MV Voltage Transformer Potential transformer​


1.Product Introduction:

Epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure the voltage, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12 kV.
The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out
from transverse side of the product.
The primary cone accords with IEEE 386-2006 figure 7.

Usage Terms

J: Voltage transformer

D: Single-phase

Z: Casting insulation

X: Residual voltage winding

18: Design No.

12: Rated voltage

R: With fuse for protection

1. Rated primary voltage: 20/√3or 15/√3 etc.

2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers

Type

Rated primary

voltage (kV)

 Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

 Rated insulation level(kV)
JDZX18-12R

15/√3

20/√3

22/√3

0.1/√3

0.11/√3

 0.2 30 300

17.5/38/95

24/50/125
0.5 50
1 80

0.1/√3/0.1/3

0.11/√3/0.11/3

 0.2/6P(3P) 15/50 300
0.5/6P(3P) 30/50
0.5/0.5/6P(3P) 50/50/150

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

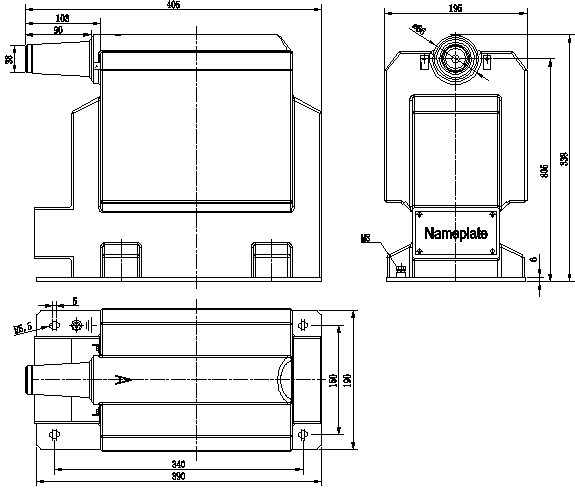

3. Outline Drawing:
