AC 5A / 1A Window Type Current Transformer LMZW3-0.72 Epoxy Resin
AC 5A / 1A Window Type Current Transformer LMZW3-0.72 Epoxy Resin
Specifications
Brand Name :
Chuangyin
Model Number :
LMZW3-0.72
Certification :
Test Report
Place of Origin :
ShenZhen
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
36,000,00pcs per year
Delivery Time :
Within 7 days
Packaging Details :
Carton packing for one sets, one set including three piece with Components
Insulation Place :
Outdoor
Application :
Relay protection in the AC
Package :
80pcs/Plywood=880*860*820mm
Rated Voltage :
600V And Below
Rated insulation level :
0.72/3/-KV
Rated primary current :
100-400A
Description

Outdoor Current Transformer LMZW3-0.72 Epoxy Resin AC 5A /1A

1. Introduction:

The current transformer is busbar type casting insulated outdoor type product. It is used for measuring current, electricity power and relay protection in the AC line or rated frequency 60Hz, rated voltage 600V and below.

The current transformer can be executed according to the standard IEC 61869-1:2007 and IEC 61869-2:2012.

2. Technical Data:

1. Rated insulation level: 0.72/2/10kV

2. Rated primary current: 100-400A

3. Rated secondary current: 5A or 1A

4. Power frequency withstanding voltage: The primary to secondary and ground.

5. The secondary to ground are all 3 kV, time is for 1min.

3. Specification:

Model Rated primary current(A)

Window size

(mm)

 Rated output(A) Accuracy Class
LMZW3-0.72 100-200 Φ45 5-10 0.5S
150-300 Φ45 7.5-10 0.5S
200-400 Φ45 10-10 0.5S
300-600 Φ55 5-10 0.5S
400-800 Φ55 5-15 0.5S
500-1000 Φ55 5-15 0.5S

Single Ratio:

Model Rated primary current(A)

Window size

(mm)

 Rated output(A) Accuracy Class

LMZW3-0.72

LMZW3-0.72

 100 Φ45 5-10 0.5S
150 Φ45 5-10 0.5S
200 Φ45 5-10 0.5S
300 Φ45 5-10 0.5S
400 Φ45 5-15 0.5S
500 Φ55 5-15 0.5S
600 Φ55 5-15 0.5S
800 Φ55 5-15 0.5S
1000 Φ55 5-15 0.5S
1200 Φ55 5-15 0.5S

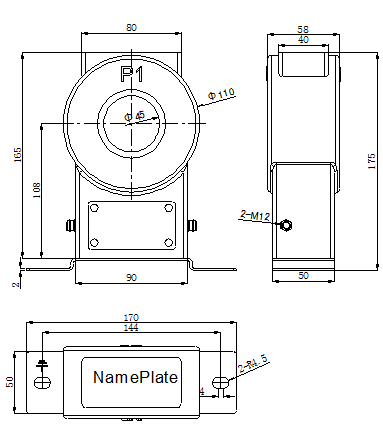

4. Outline Drawing:

AC 5A / 1A Window Type Current Transformer LMZW3-0.72 Epoxy ResinAC 5A / 1A Window Type Current Transformer LMZW3-0.72 Epoxy Resin
