0.72kV Single Phase LV Current Transformer / Indoor Current Transformer
0.72kV Single Phase LV Current Transformer / Indoor Current Transformer
Specifications
Brand Name :
Chuangyin
Model Number :
BH-0.66I
Certification :
Test Report
Place of Origin :
ShenZhen
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
36,000,00pcs per year
Delivery Time :
Within 7 days
Packaging Details :
Carton packing for one sets, one set including three piece with Components
Type :
LV Current Transformer
Rated Insulation Level :
0.66kv
Installation Site :
Indoor
Power Frequency Withstand Voltage :
3000v/1min
Rated Voltage :
AC 660V Or 600V
Usage :
Multi function electricity energy meter
Description


BH-0.66I LV Current Transformer 0.72kV Indoor Single-Phase Type

1. Introduction

BH-0.66I Current Transformer adopts high quality PC materials, full-enclosed construction, compatible round/square hole can pass cable or busbar, is suitable for controlling, protection and measuring functions.

P1,P2 primary terminals,S1,S2 secondary terminals.

P1& S1 same as P2,S2(subtractive polarity)

2. Specification

Model No Outline Dimension Penetrate Dimension Installation Dimension Installation
W H D E ￠ M
30 I 59 78 30 30.5 23 31 A.B.D
33 I-I 59 80 45 30.5 23 31 A.B.D
40 I 75 97 44 42 30.5 45 A.B.C
60 I 102 126 46 61.5 45 62 B.C
80 I 118 138 45 81.5 52 60 B.C.E
100 I 147 162 45 101.5 62 80 B.C.E

3. Technical Parameters:

1 .Rated Primary Current:50-10000A; Rated Secondary Current:5A, 1A
2. Rated voltage: AC 660V or 600V etc
3. Rated Frequency: 50-60HZ
4. Ambient Temperature: -30C-+55C
5. Altitude: <=3000m
6. Power frequency withstand voltagefBetween Cover and Secondary winding): 3000V/1 min, 50Hz

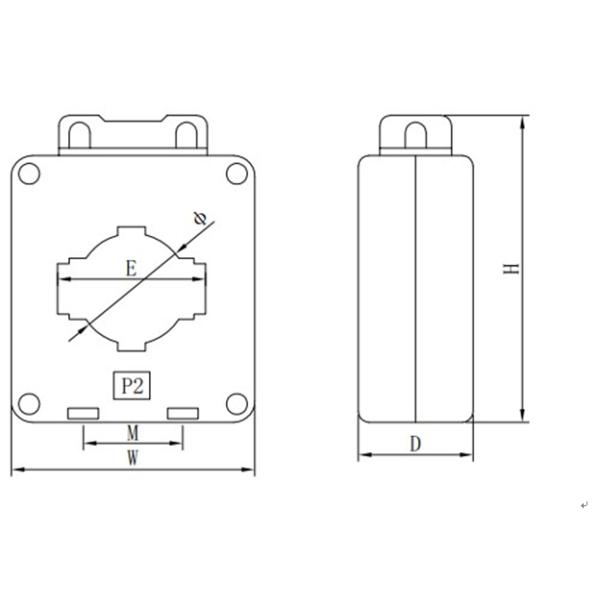

Dimension:

0.72kV Single Phase LV Current Transformer / Indoor Current Transformer
