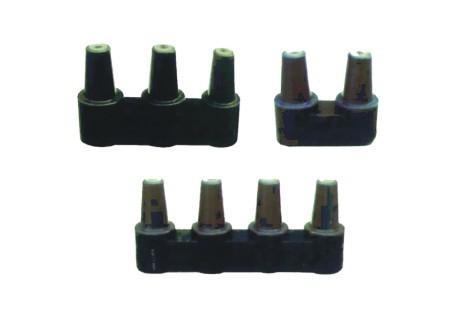

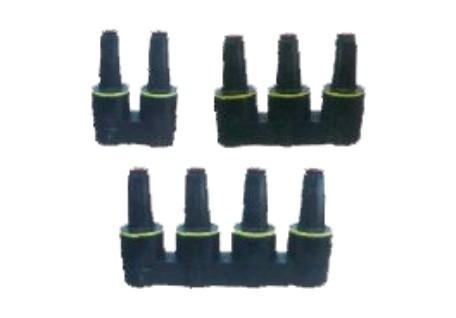

200A 15kV Class Loadbreak Junction Separable Connectors for Connection System
200A 15kV Class Loadbreak Junction Separable Connectors for Connection System
200A 15kV Class Loadbreak Junction Separable Connectors for Connection System
200A 15kV Class Loadbreak Junction Separable Connectors for Connection System
Specifications
Brand Name :
CY-Group
Model Number :
CYS-AMP2-15/200
Certification :
KEMA CE ISO SGS TUV UC3
Place of Origin :
China
MOQ :
1pcs
Price :
NEGOTIABLE
Payment Terms :
L/C, TT,D/A,D/P
Supply Ability :
6000000pcs/year
Delivery Time :
3-8 days
Packaging Details :
Plymood
Material :
RUBBER
Voltage Class :
15 kV
Voltage Rating :
8.3/14.4 kV
Rated Current :
200 A
AC Withstand Voltage 5min :
39 kV
DC Withstand Voltage 15min :
35 kV
Partial Discharge :
15 kV, ≤10 pC
BIL :
95 kV
Thermal Current :
10 kA, 0.6 s
Dynamic Current :
20 kA, 10 ms
Cable Section :
35 to 120mm2
Description

Separable Connector 200A, 15kV Class Loadbreak Junction for Connection System

Application

Chuangyin® Loadbreak Junction is widely applicable for connecting in pad-mounted apparatus, under-ground vaults, and other apparatus to sectionalize, establish loops, taps, or splices, and to facilitate apparatus changeouts. It has two or more interconnected bushing and/or bushing well interfaces.

The interface complys with IEEE standard 386, 8.3/14.4 kV, 200 A loadbreak design.

Features

Made of high quality EPDM rubber

With two or more interconnected bushing and/or bushing well interfaces

Fully shielded connection for loadbreak system

100% factory tested

In compliance with IEC standard 386

Construction

200A 15kV Class Loadbreak Junction Separable Connectors for Connection System200A 15kV Class Loadbreak Junction Separable Connectors for Connection System

1. Arc Quenching Rod

2. Probe

3. Insulating Layer

4. Semi-conducting Shield

5. Bus-bar

Technical Data

Item Parameters
Voltage Class 15 kV
Voltage Rating 8.3/14.4 kV
Rated Current 200A
AC Withstand Voltage 5min 39 kV
DC Withstand Voltage 15min 35 kV
Partial Discharge 15 kV, ≤10 pC
BIL 95 kV
Thermal Current 10 kA, 0.6 s
Dynamic Current 20 kA, 10 ms

Kit Contents

Loadbreak Junction

Dustproof Cap

Wipers

Silicone Grease

Installation Instruction

Certificate

Elbow connector/Elbow arrester /Insulated cap/ Bushing well

Ordering Instructions

Product Part Number
15 kV, 200A 2-way Junction CYS-AMP2-15/200
15 kV, 200A 3-way Junction CYS-AMP3-15/200
15 kV, 200A 4-way Junction CYS-AMP4-15/200
