Specifications
Brand Name :
AUMA
Model Number :
SA14.2-F10
Certification :
ROHS
Place of Origin :
Germany
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1~1000pcs
Delivery Time :
on request
Packaging Details :
carton
Origin :
Germeny
Function :
Multi-turn
Torque range :
from 10 Nm to 32,000 Nm
Modulating torque range :
from 15 Nm to 1,600 Nm
Output speeds :
from 4 to 90 rpm
Max. number of starts :
1,200 c/h
Model :
SA14.2-F10
shipping weight :
30kg
Description

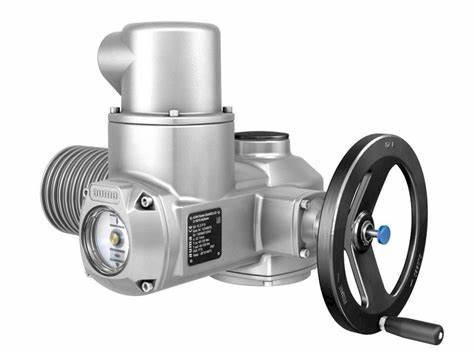

AUMA Multi-turn SA Actuators SA14.2-F10

Part Number: SA14.2-F10
Product Name: AUMA Multi-turn SA Actuators
Origin: Germany
Actuators of the SA type range for open-close duty and positioning duty are rated for class A and B or types of duty S2 - 15 min. A special version for longer running is available for the S2 - 30 min duty.
Specification
Actuators of type range SA/SAR can be combined with various controls from simple OPEN-CLOSE control to the micro-controlled version with logging of operating data or fieldbus interface.
Design features SA
Torque range from 10 Nm to 32,000 Nm
Output speeds from 4 to 180 rpm
Limit and torque sensing
Available with 3-ph AC, 1-ph AC and DC motors
Handwheel for manual operation
Design features SAR
Torque range from 15 Nm to 4,000 Nm
Modulating torque range from 15 Nm to 1,600 Nm
Max. number of starts 1,200 c/h
Output speeds from 4 to 90 rpm
Limit and torque sensing
Available with 3-ph AC, 1-ph AC motors
Handwheel for manual operation
Important terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 30kg
4. Unit dimensions: (W x L x H) : 70*50*40cm
5. Offered product genuine and brand new
6. Payment terms: TT
7. Warranty: 12 months
