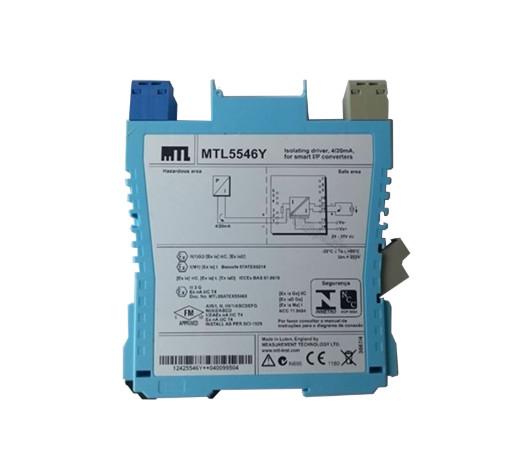

MTL5546Y MTL Safety Barrier
MTL5546Y MTL Safety Barrier
MTL5546Y MTL Safety Barrier
MTL5546Y MTL Safety Barrier
Specifications
Brand Name :
MTL
Model Number :
MTL5546Y
Certification :
ROHS
Place of Origin :
UK
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pc+on stock
Delivery Time :
on request
Packaging Details :
carton
Manufacture :
MTL
Number of channels :
One
Working range :
4 to 20mA
Communications supported :
HART
LED indicator :
Green: power indication
Shipping Weight :
1.0 Kg
Temperature drift :
1.0µA/°C
Maximum load resistance :
800Ω (16V at 20mA)
Description

MTL5546Y MTL Isolating Driver for 4–20mA HART valve positioners with line fault detection

The MTL5546Y-T accepts a 4/20mA floating signal from a safe-area
controller to drive a current/pressure converter (or any other load up to
800Ω) in a hazardous area. For HART valve positioners, the module also
permits bi-directional transmission of digital communication signals.
Process controllers with a readback facility can detect open circuit in
the field wiring: if this occurs, the current taken into the terminals drops
to a preset level.


SPECIFICATION
See also common specification
Number of channels One
Location of I/P converter
Zone 0, IIC, T4–6 hazardous area if suitably certified
Div. 1, Group A, hazardous location
Working range
4 to 20mA
Digital signal bandwidth
500Hz to 10kHz
Maximum load resistance
800Ω (16V at 20mA)
Output resistance
> 1MΩ
Under/over range capability
Under range = 1mA
Over range = 24mA (load ≤ 520Ω)
Input and output circuit ripple
< 40µA peak-to-peak
Transfer accuracy at 20°C
Better than 20µA
Temperature drift
< 1.0µA/°C
