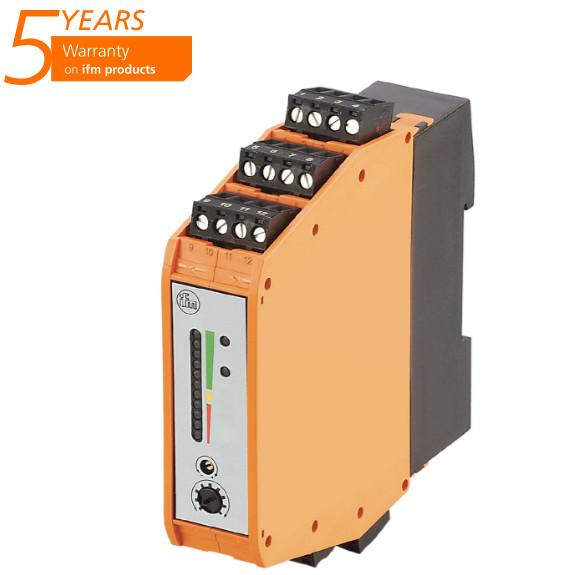

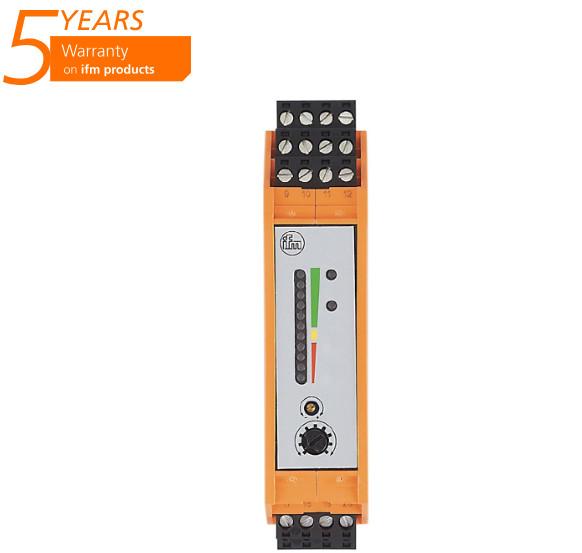

IFM Control monitor for flow sensors SN0150 VS3000/85...265VAC in stock

• For the connection of flow sensors
• Integrated flow, temperature and wire monitoring
• Adjustable switching outputs for monitoring flow and temperature
• Clearly visible multi-colour LED bargraph display
• Signal output via potential-free relay contacts
•

• Product characteristics Number of inputs and outputs Number of analogue outputs: 1 Measuring range -0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa Process connection threaded connection Aseptoflex external thread Aseptoflex Application Special feature Gold-plated contacts Application flush mountable for the food and beverage industry Media viscous media and liquids with suspended particles; liquids and gases Medium temperature[°C] -25...125; (145 max. 1h) Min. bursting pressure 30000 mbar 12000 inH2O 3000 kPa Pressure rating 6000 mbar 2400 inH2O 600 kPa Type of pressure relative pressure No dead space yes Electrical data Operating voltage[V] 14...30 DC Min. insulation resistance[MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Measuring principle hydrostatic Inputs / outputs Number of inputs and outputs Number of analogue outputs: 1 Outputs Total number of outputs 1 Output signal analogue signal Number of analogue outputs 1 Analogue current output[mA] 4...20 Max. load[Ω] 550; (Ub = 24 V; (Ub - 13 V) / 20 mA) Overload protection yes Measuring/setting range Measuring range -0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa Analogue start point -12.5...100 mbar -5...40.2 inH2O -1.25...10 kPa Analogue end point 50...250 mbar 20.2...100.4 inH2O 5...25 kPa In steps of 0.5 mbar 0.2 inH2O 0.05 kPa Factory setting ASP = 0.0 mbar AEP = 250.0 mbar Accuracy / deviations Repeatability[% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) Characteristics deviation[% of the span] < ± 0,6; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) Linearity deviation[% of the span] < ± 0,5; (Turn down 1:1) Hysteresis deviation[% of the span] < ± 0,1; (Turn down 1:1) Long-term stability[% of the span] < ± 0,1; (Turn down 1:1; per year) Temperature coefficient zero point[% of the span / 10 K] < ± 0,1; (0...80 °C) Temperature coefficient span[% of the span / 10 K] < ± 0,4; (0...80 °C) Response times Max. response time analogue output[ms] 3 Software / programming Parameter setting options zero point; span Interfaces Communication interface EPS Operating conditions Ambient temperature[°C] -25...80 Storage temperature[°C] -40...100 Protection IP 67
  Application Application Flow monitoring; Temperature monitoring; Wire monitoring Electrical data Frequency AC[Hz] 47...63 Operating voltage tolerance[%] -5...10 Operating voltage[V] 90...240 AC Max. power consumption[VA] 4 Protection class II Reverse polarity protection no Power-on delay time[s] 10...80; (adjustable (fixed-value resistors terminals 22-23)) Number of channels 1 Outputs Performance in case of a fault In case of undervoltage all relays are de-energised; the LED "LOW VOLTAGE/WIRE BREAK-RELAY" lights Electrical design relay Contact rating 4 A (250 V AC / 30 V DC) Switching function flow monitoring relay energised when flow is present and during the power-on delay time Switching function temperature monitoring relay energised when temperature is exceeded Switching function wire break monitoring relay de-energised in case of wire break or short circuit Short-circuit proof no Overload protection no Response times Response time[s] < 3 Software / programming Adjustment of the switch point potentiometer Selection liquids / gases wire bridge; on delivery: monitoring of liquids.; for monitoring of gases: link terminals 23 / 24. Switch point setting potentiometer Temperature range[°C] 0...80 Repeatability of the set switch point[K] 4 Operating conditions Ambient temperature[°C] -20...60 Note on ambient temperature in case of sufficient free space for convection cooling Protection IP 20 Tests / approvals MTTF[years] 168 Mechanical data Weight[g] 252.5 Housing rectangular Type of mounting mounting on DIN rail; (TH35 (EN 60715)) Dimensions[mm] 100 x 25 x 103.5 Materials PBT Displays / operating elements Display function 11 x LED switching status LED, red switching status LED, red Electrical connection Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting Remarks Remarks Recommendation Check the safe functioning of the unit after a short circuit. Pack quantity 1 pcs. Electrical connection Connection COMBICON connector:
