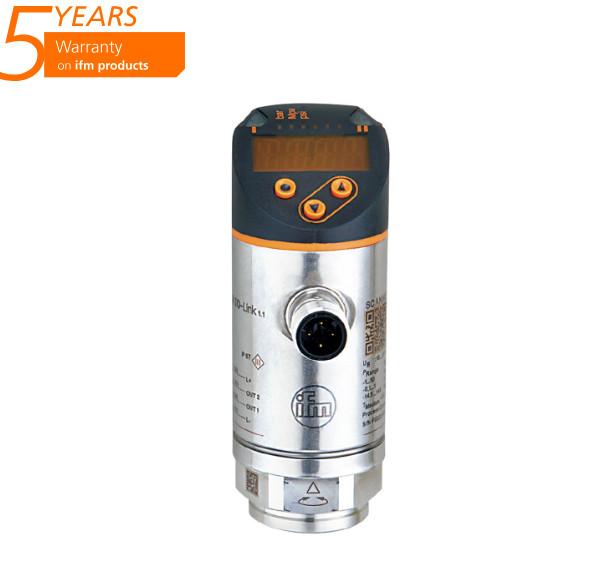

IFM Pressure sensor with display PN2093 PN-025-RER14-MFRKG/US/ /V in stock

• Two switching outputs, one of them programmable as IO-Link and one as analogue output
• Red/green display for clear identification of the acceptable range
• The process connection can be rotated for optimum alignment
• With long-term stability thanks to high overload protection
• Robust design for use in harsh industrial environments

• Product characteristics Number of inputs and outputs Number of analogue outputs: 1 Measuring range -0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa Process connection threaded connection Aseptoflex external thread Aseptoflex Application Special feature Gold-plated contacts Application flush mountable for the food and beverage industry Media viscous media and liquids with suspended particles; liquids and gases Medium temperature[°C] -25...125; (145 max. 1h) Min. bursting pressure 30000 mbar 12000 inH2O 3000 kPa Pressure rating 6000 mbar 2400 inH2O 600 kPa Type of pressure relative pressure No dead space yes Electrical data Operating voltage[V] 14...30 DC Min. insulation resistance[MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Measuring principle hydrostatic Inputs / outputs Number of inputs and outputs Number of analogue outputs: 1 Outputs Total number of outputs 1 Output signal analogue signal Number of analogue outputs 1 Analogue current output[mA] 4...20 Max. load[Ω] 550; (Ub = 24 V; (Ub - 13 V) / 20 mA) Overload protection yes Measuring/setting range Measuring range -0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa Analogue start point -12.5...100 mbar -5...40.2 inH2O -1.25...10 kPa Analogue end point 50...250 mbar 20.2...100.4 inH2O 5...25 kPa In steps of 0.5 mbar 0.2 inH2O 0.05 kPa Factory setting ASP = 0.0 mbar AEP = 250.0 mbar Accuracy / deviations Repeatability[% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) Characteristics deviation[% of the span] < ± 0,6; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) Linearity deviation[% of the span] < ± 0,5; (Turn down 1:1) Hysteresis deviation[% of the span] < ± 0,1; (Turn down 1:1) Long-term stability[% of the span] < ± 0,1; (Turn down 1:1; per year) Temperature coefficient zero point[% of the span / 10 K] < ± 0,1; (0...80 °C) Temperature coefficient span[% of the span / 10 K] < ± 0,4; (0...80 °C) Response times Max. response time analogue output[ms] 3 Software / programming Parameter setting options zero point; span Interfaces Communication interface EPS Operating conditions Ambient temperature[°C] -25...80 Storage temperature[°C] -40...100 Protection IP 67
  Product characteristics Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1 Measuring range -1...25 bar -14.5...362.5 psi -0.1...2.5 MPa Process connection threaded connection G 1/4 internal thread (DIN EN ISO 1179-2) Application Special feature Gold-plated contacts Measuring element ceramic-capacitive pressure measuring cell Application for industrial applications Media liquids and gases Medium temperature[°C] -25...80 Min. bursting pressure 350 bar 5075 psi 35 MPa Pressure rating 150 bar 2175 psi 15 MPa Vacuum resistance -1000 mbar -0.1 MPa Type of pressure relative pressure; vacuum Electrical data Operating voltage[V] 18...30 DC; (to SELV/PELV) Current consumption[mA] < 35 Min. insulation resistance[MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Power-on delay time[s] 0.3 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1 Outputs Total number of outputs 2 Output signal switching signal; analogue signal; IO-Link; (configurable) Electrical design PNP/NPN Number of digital outputs 2 Output function normally open / normally closed; (parameterisable) Max. voltage drop switching output DC[V] 2 Permanent current rating of switching output DC[mA] 250 Switching frequency DC[Hz] < 500 Number of analogue outputs 1 Analogue current output[mA] 4...20; (scalable 1:5) Max. load[Ω] 500 Analogue voltage output[V] 0...10; (scalable 1:5) Min. load resistance[Ω] 2000 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Measuring/setting range Measuring range -1...25 bar -14.5...362.5 psi -0.1...2.5 MPa Analogue start point -1...20 bar -14.5...290 psi -0.1...2 MPa Analogue end point 4...25 bar 58...362.5 psi 0.4...2.5 MPa Factory setting / CMPT = 2 Set point SP -0.85...25 bar -12...362.5 psi -0.085...2.5 MPa Reset point rP -0.95...24.9 bar -13.5...361 psi -0.095...2.49 MPa Min. difference between SP and rP 0.15 bar 1.5 psi 0.015 MPa In steps of 0.05 bar 0.5 psi 0.005 MPa Status_B High Resolution / CMPT = 3 Set point SP -0.84...25 bar -12.2...362.6 psi -0.084...2.5 MPa Reset point rP -0.95...24.9 bar -13.7...361.1 psi -0.095...2.49 MPa Min. difference between SP and rP 0.11 bar 1.5 psi 0.011 MPa In steps of 0.01 bar 0.1 psi 0.001 MPa Accuracy / deviations Switch point accuracy[% of the span] < ± 0,4; (Turn down 1:1) Repeatability[% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) Characteristics deviation[% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting) Hysteresis deviation[% of the span] < ± 0,1; (Turn down 1:1) Long-term stability[% of the span] < ± 0,05; (Turn down 1:1; per 6 months) Temperature coefficient zero point[% of the span / 10 K] < ± 0,2; (-0...80 °C) Temperature coefficient span[% of the span / 10 K] < ± 0,2; (-0...80 °C) Notes on the accuracy / deviation switch point accuracy, linearity error under DNV GL: < ± 1%: < ± 1% Response times Response time[ms] < 1.5 Delay time programmable dS, dr[s] 0...50 Damping process value dAP[s] 0...4 Damping for the analogue output dAA[s] 0...4 Max. response time analogue output[ms] 3 Software / programming Parameter setting options hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output Interfaces Communication interface IO-Link Transmission type COM2 (38,4 kBaud) IO-Link revision 1.1 SDCI standard IEC 61131-9 SIO mode yes Required master port type A; (when pin 2 not connected: B) Supported DeviceIDs Type of operation DeviceID Factory setting / CMPT = 2 462 Status_B High Resolution / CMPT = 3 973 Note For further information please see the IODD PDF file under "Downloads" Factory setting / CMPT = 2 Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis Min. process cycle time[ms] 2.3 IO-Link resolution pressure[bar] 0.01 IO-Link process data (cyclical) function bit length pressure 14 binary switching information 2 IO-Link functions (acyclical) application specific tag Status_B High Resolution / CMPT = 3 Profiles Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000) Min. process cycle time[ms] 3 IO-Link resolution pressure[bar] 0.01 IO-Link process data (cyclical) function bit length pressure 16 device status 4 binary switching information 2 IO-Link functions (acyclical) application specific tag Operating conditions Ambient temperature[°C] -25...80 Storage temperature[°C] -40...100 Protection IP 65; IP 67
