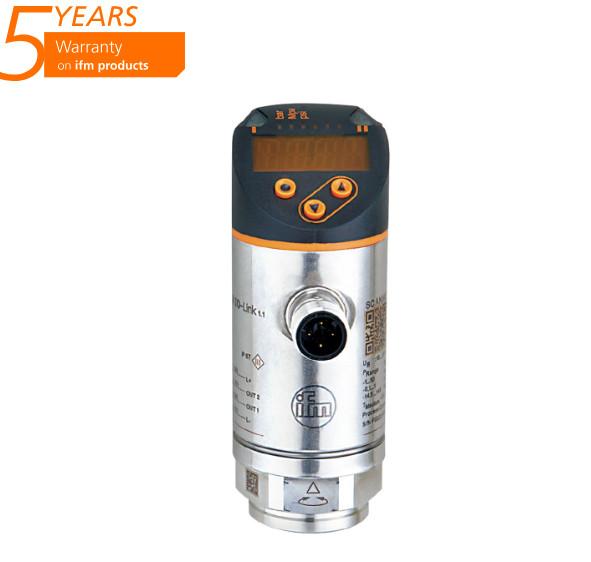

IFM Pressure sensor with display PN7099 PN-1-1BRER14-QFRKG/US/ /V in stock

• Two switching outputs, one of them programmable as IO-Link and one as analogue output
• Red/green display for clear identification of the acceptable range
• The process connection can be rotated for optimum alignment
• With long-term stability thanks to high overload protection
• Robust design for use in harsh industrial environments

• Product characteristics Number of inputs and outputs Number of analogue outputs: 1 Measuring range -0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa Process connection threaded connection Aseptoflex external thread Aseptoflex Application Special feature Gold-plated contacts Application flush mountable for the food and beverage industry Media viscous media and liquids with suspended particles; liquids and gases Medium temperature[°C] -25...125; (145 max. 1h) Min. bursting pressure 30000 mbar 12000 inH2O 3000 kPa Pressure rating 6000 mbar 2400 inH2O 600 kPa Type of pressure relative pressure No dead space yes Electrical data Operating voltage[V] 14...30 DC Min. insulation resistance[MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Measuring principle hydrostatic Inputs / outputs Number of inputs and outputs Number of analogue outputs: 1 Outputs Total number of outputs 1 Output signal analogue signal Number of analogue outputs 1 Analogue current output[mA] 4...20 Max. load[Ω] 550; (Ub = 24 V; (Ub - 13 V) / 20 mA) Overload protection yes Measuring/setting range Measuring range -0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa Analogue start point -12.5...100 mbar -5...40.2 inH2O -1.25...10 kPa Analogue end point 50...250 mbar 20.2...100.4 inH2O 5...25 kPa In steps of 0.5 mbar 0.2 inH2O 0.05 kPa Factory setting ASP = 0.0 mbar AEP = 250.0 mbar Accuracy / deviations Repeatability[% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) Characteristics deviation[% of the span] < ± 0,6; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1) Linearity deviation[% of the span] < ± 0,5; (Turn down 1:1) Hysteresis deviation[% of the span] < ± 0,1; (Turn down 1:1) Long-term stability[% of the span] < ± 0,1; (Turn down 1:1; per year) Temperature coefficient zero point[% of the span / 10 K] < ± 0,1; (0...80 °C) Temperature coefficient span[% of the span / 10 K] < ± 0,4; (0...80 °C) Response times Max. response time analogue output[ms] 3 Software / programming Parameter setting options zero point; span Interfaces Communication interface EPS Operating conditions Ambient temperature[°C] -25...80 Storage temperature[°C] -40...100 Protection IP 67
  Product characteristics Number of inputs and outputs Number of digital outputs: 2 Measuring range -1...1 bar -1000...1000 mbar -14.5...14.5 psi -29.4...29.4 inHg -100...100 kPa Process connection threaded connection G 1/4 internal thread Application Special feature Gold-plated contacts Measuring element ceramic-capacitive pressure measuring cell Application for industrial applications Media liquids and gases Medium temperature[°C] -25...80 Min. bursting pressure 30000 mbar 450 psi 880 inHg 3000 kPa Pressure rating 10000 mbar 145 psi 290 inHg 1000 kPa Vacuum resistance -1000 mbar -0.1 MPa Type of pressure relative pressure; vacuum Electrical data Operating voltage[V] 18...30 DC; (to SELV/PELV) Current consumption[mA] < 35 Min. insulation resistance[MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Power-on delay time[s] < 0.3 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital outputs: 2 Outputs Total number of outputs 2 Output signal switching signal; IO-Link; (configurable) Electrical design PNP/NPN Number of digital outputs 2 Output function normally open / normally closed; (parameterisable) Max. voltage drop switching output DC[V] 2.5 Permanent current rating of switching output DC[mA] 150; (200 (...60 °C) 250 (...40 °C)) Switching frequency DC[Hz] < 170 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Measuring/setting range Measuring range -1...1 bar -1000...1000 mbar -14.5...14.5 psi -29.4...29.4 inHg -100...100 kPa Factory setting / CMPT = 2 Set point SP -980...1000 mbar -14.3...14.5 psi -29...29.6 inHg -98...100 kPa Reset point rP -990...990 mbar -14.4...14.4 psi -29.4...29.2 inHg -99...99 kPa Min. difference between SP and rP 10 mbar 0.2 psi 0.4 inHg 1 kPa In steps of 10 mbar 0.1 psi 0.2 inHg 0.1 kPa Status_B High Resolution / CMPT = 3 Set point SP -983...1000 mbar -14.3...14.5 psi -29...29.5 inHg -98...100 kPa Reset point rP -993...990 mbar -14.4...14.4 psi -29.3...29.2 inHg -99...99 kPa Min. difference between SP and rP 10 mbar 0.2 psi 0.3 inHg 1 kPa In steps of 1 mbar 0.1 psi 0.1 inHg 0.1 kPa Accuracy / deviations Switch point accuracy[% of the span] < ± 0,5 Repeatability[% of the span] < ± 0,1; (with temperature fluctuations < 10 K) Characteristics deviation[% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) Hysteresis deviation[% of the span] < ± 0,25 Long-term stability[% of the span] < ± 0,05; (per 6 months) Temperature coefficient zero point[% of the span / 10 K] < ± 0,2; (-25...80 °C) Temperature coefficient span[% of the span / 10 K] < ± 0,2; (-25...80 °C) Response times Response time[ms] < 3 Delay time programmable dS, dr[s] 0...50 Software / programming Parameter setting options hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit Interfaces Communication interface IO-Link Transmission type COM2 (38,4 kBaud) IO-Link revision 1.1 SDCI standard IEC 61131-9 SIO mode yes Required master port type A; (when pin 2 not connected: B) Process data analogue 1 Process data binary 2 Supported DeviceIDs Type of operation DeviceID Factory setting / CMPT = 2 406 PN7009 314 Status_B High Resolution / CMPT = 3 604 Note For further information please see the IODD PDF file under "Downloads" Factory setting / CMPT = 2 Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis Min. process cycle time[ms] 2.3 IO-Link resolution pressure 1 mbar 0.0001 MPa IO-Link process data (cyclical) function bit length pressure 14 binary switching information 2 IO-Link functions (acyclical) application specific tag Status_B High Resolution / CMPT = 3 Profiles Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000) Min. process cycle time[ms] 3 IO-Link resolution pressure 1 mbar 0.0001 MPa IO-Link process data (cyclical) function bit length pressure 16 device status 4 binary switching information 2 IO-Link functions (acyclical) application specific tag Operating conditions Ambient temperature[°C] -25...80 Storage temperature[°C] -40...100 Protection IP 65; IP 67
