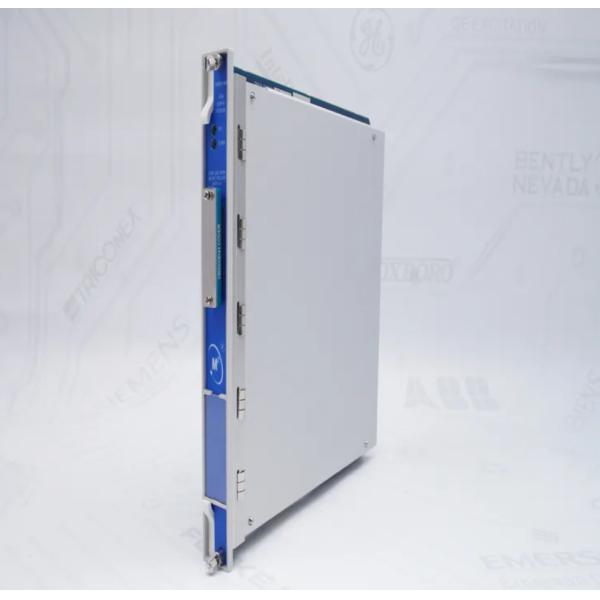

3500/94M 184826-01 Bently Nevada VGA Display Monitor for Industrial Applications
3500/94M 184826-01 Bently Nevada VGA Display Monitor for Industrial Applications
Specifications
Brand Name :
BENTLY NEVADA
Model Number :
184826-01
Certification :
ROHS
Place of Origin :
U.S.A
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10+pc+on stock
Delivery Time :
on request
Packaging Details :
carton
Manufacture :
BENTLY NEVADA
Place of Origin: :
USA
Part Number :
184826-01
Model Type :
3500/94 PLC Module
Market :
Worldwide market
Agency Approval :
No required
Description

3500/94M is a VGA Display Module developed by Bently Nevada. It belongs to the 3500 series of components. Up to nine unique screens can be configured using the 3500 Rack Configuration Software. One bar graph panel displays all of the 1X-filtered vibration readings by default, while another displays proximity transducer gap values.

Product Specifications

Dimensions (Height x Width x Depth) 241.3 mm x 24.4 mm x 241.8 mm (9.5 in x 0.96 in x 9.52 in)
Weight 0.73 kg (1.6 lb.)
Power consumption 4.6 watts max.
High-speed network Monitor status, data and values
Operating Temperature -20°C to 65°C(-22°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity

95%, non-condensing

Product Details

FUNCTIONAL DESCRIPTION

The Bently Nevada 3500/94M VGA Display Module by Bently Nevada, part of the 3500 series, allows configuration of up to nine screens using the Rack Configuration Software. It displays 1X-filtered vibration readings and proximity transducer gap values by default. Custom screens can organize system data and display information from all machinery protection systems, including alarms, system events, module data, and status indicators, offering nine customizable display modes.

COMPONENTS OF THE SYSTEM

The system comprises:

  • VGA module

  • Input/output module

  • Touch screen display (10 inches or 15 inches) with VGA resolution

  • Standard cables up to 6 meters from a 3500 rack, or supported Keyboard Video Monitor Extender up to 10 kilometers from the 3500 racks, for mounting the Bently Nevada VGA Display Monitor.

FEATURE

Power consumption 4.6 watts max.

High-speed network Monitor status, data and values

RS232 port (I/0) touch controller data

Front port:

24 Vdc Power out

VGA signal out

Touch commands in.

Operating temp: -22 to 149°F (-20 to 65°C)

3500/94M 184826-01 Bently Nevada VGA Display Monitor for Industrial Applications
